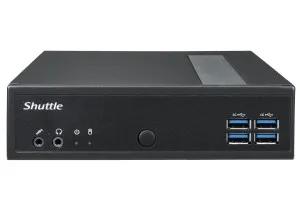

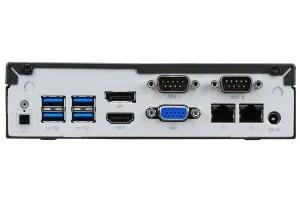

DL40N
Shuttle○ Pre-order

DL40N

SKU: NWK-560

1.3-liter Slim PC

SI Price (excl. VAT)
฿30,880
per pcs · MOQ: 1
Stock
Actual: 0 units
Planning: 0 units
Shipping Conditions
Contact us for shipping details.
Warranty
Contact us for warranty details.
1
Product Highlights
    ChassisSlim black steel chassis, fanless design
    Dimensions190 × 165 × 43 mm (L × W × H), 1.35-litre
    Weight0.8 kg net
    Operating SystemWindows 11 64-bit / Linux 64-bit
    ProcessorIntel® Processor N150
    CPU Cores / Threads4 cores / 4 threads
    Maximum CPU ClockUp to 3.6 GHz
    Processor TDP6 W
    Integrated GraphicsIntel® Graphics
    GPU24 Execution Units
    Display SupportUp to 3 displays simultaneously
    Display OutputsHDMI 2.0b / DisplayPort 1.4a / VGA
    Maximum Digital ResolutionUp to 4096 × 2160 @ 60 Hz
    Memory1 × DDR5-4800 SO-DIMM
    Maximum Memory16 GB
    2.5" Storage1 × 2.5" SATA III HDD/SSD bay
    M.2 Storage1 × M.2-2280 SSD slot
    M.2 Storage InterfacePCIe Gen3 ×2 NVMe / SATA III
    LAN2 × 2.5 Gigabit Ethernet RJ45
    Ethernet Controller2 × Intel i226-LM
    WLAN Expansion1 × M.2-2230E slot
    Front USB4 × USB 3.2 Gen 1 Type-A
    Rear USB4 × USB 3.2 Gen 1 Type-A
    Serial Ports2 × RS232, one switchable to RS422 / RS485
    AudioRealtek ALC888S HD Audio
    TPMFirmware TPM 2.0
    CoolingPassive fanless cooling
    Continuous OperationSupports 24/7 operation
    Power AdapterExternal 65 W fanless adapter
    DC Input12 V or 19 V DC
    Operating Temperature0–40°C
    Relative Humidity10–90% (Non-condensing)
