| Heading | Value |

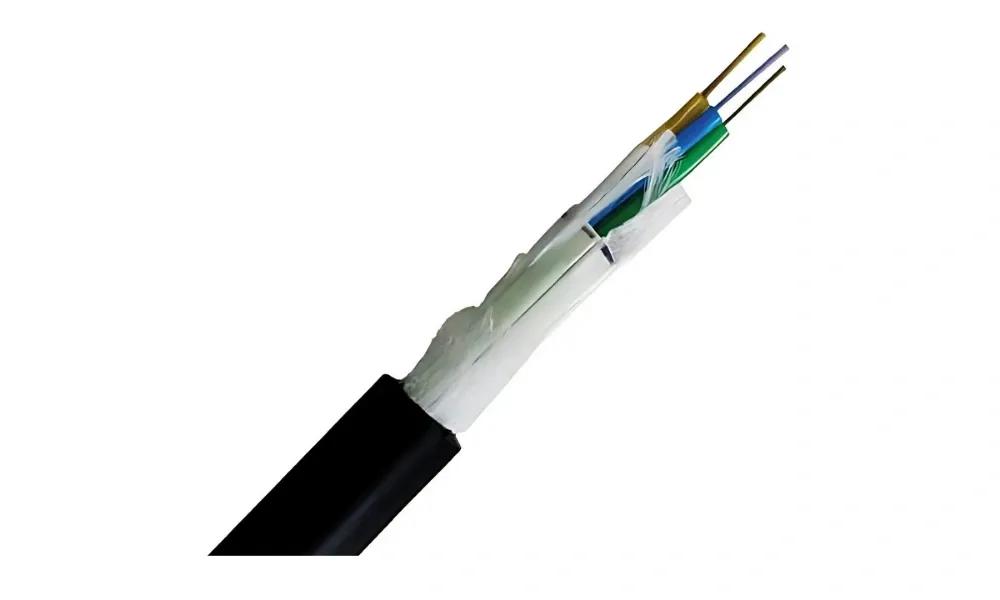

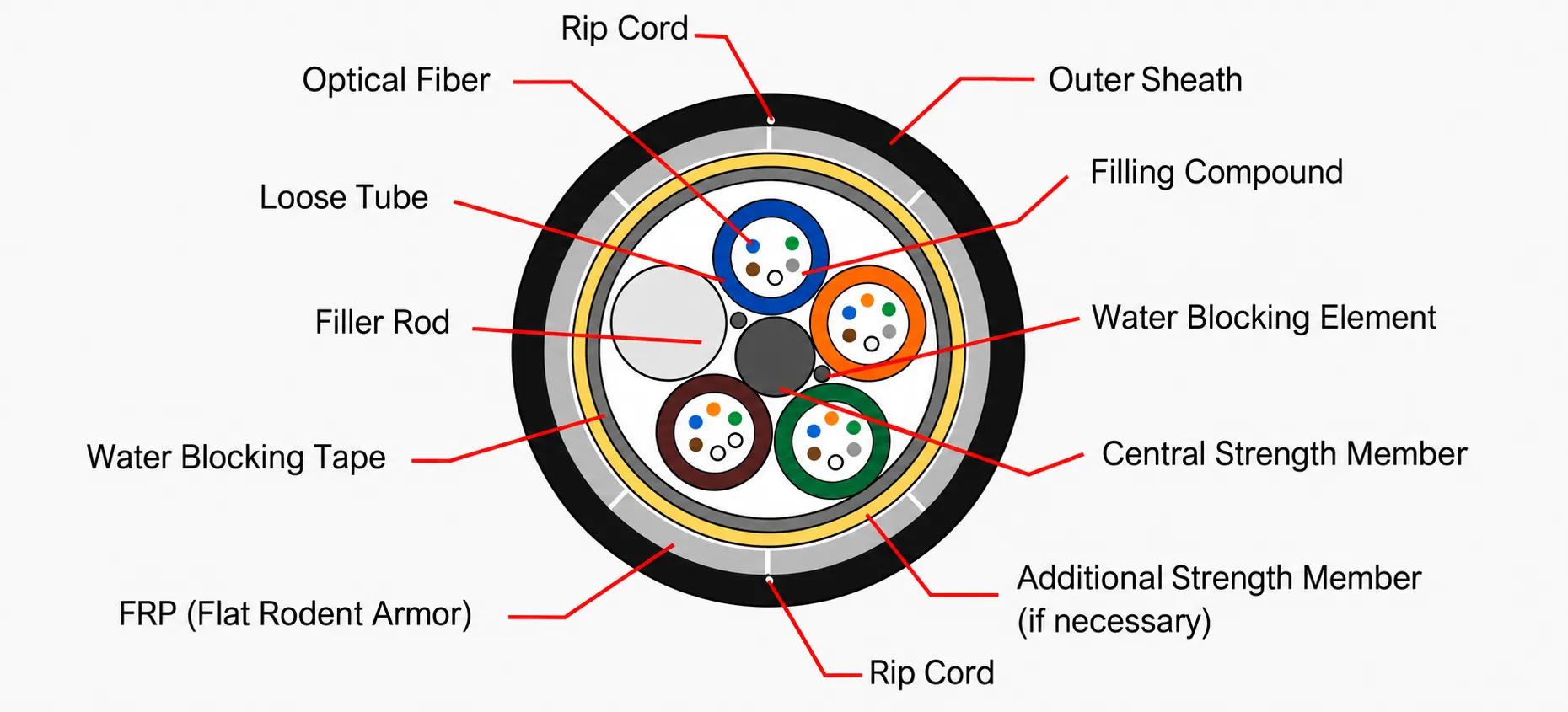

| Product Type | ADSS Single Jacket Fiber Optic Cable with FRP Reinforcement |
| Installation Type | Aerial / Duct |
| Fiber Type | Singlemode |
| Fiber Standard | ITU-T G.652D / G.657A2 |
| Number of Core Elements | 5 |
| Fiber Material | High-Grade Silica / Compound Glass |
| Central Strength Member | FRP, 1.8 ± 0.2 mm |
| Loose Tube Material | PBT |
| Loose Tube Outer Diameter | 2.0 ± 0.2 mm |
| Loose Tube Inner Diameter | 1.5 ± 0.2 mm |
| Fiber per Loose Tube | 6 Fibers |
| Loose Tube Filling | Thixotropic Jelly Compound |
| Water Blocking | Water-Blocking Tape + Water-Blocking Yarn |
| Strength Member | Aramid Yarn |
| Rodent Protection Armor | Flat FRP, Non-Metallic |
| FRP Armor Thickness | 1.0 ± 0.2 mm |
| Outer Sheath Material | UV-Proof Flame-Retardant PE / Black HDPE |
| Outer Sheath Thickness | 1.8 ± 0.2 mm |
| Rip Cord | 2 Polyester Cords |
| Filler Rod Material | Polyethylene |
| Filler Rod Diameter | 2.2 ± 0.2 mm |
| Stranding Method | Reverse Oscillating Lay (ROL), SZ Direction |
| Standard Lay Length | 75 ± 5 mm |
| Short-Term Tensile Load | 3600 N |
| Long-Term Tensile Load | 2500 N |
| Crush Resistance | ≥ 3400 N / 10 cm |
| Overall Diameter | Approx. 12 mm |
| Cable Diameter (24 / 48 Core) | 10.5 ± 1 mm / 11.5 ± 1 mm |
| Cable Weight (24 / 48 Core) | Approx. 85 / 100 ± 10 kg/km |
| Span Length | 40–100 m |
| Maximum Wind Speed | 126 km/h |
| Operating Temperature | -40°C to +70°C |
| Installation Temperature | -40°C to +70°C |
| Storage / Shipping Temperature | -40°C to +75°C |
| Color Stripe Width | 3.0 ± 0.5 mm |
