F-ML-ADSS9-24-H-DJ

Name: F-ML-ADSS9-24-H-DJ
Brand: FOCOMM
SKU: FFB-090
Availability: OutOfStock

SKU: FFB-090

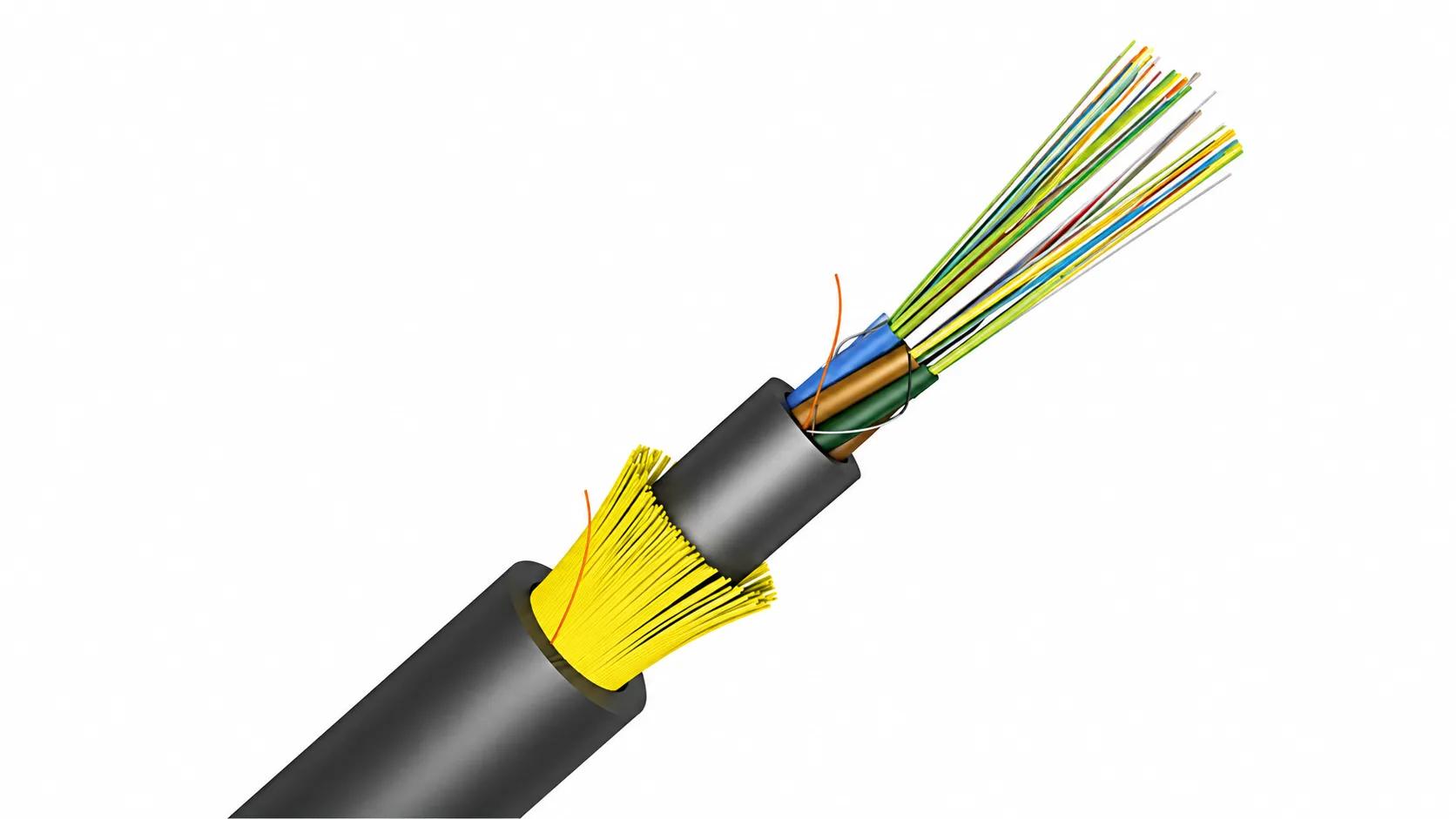

Fiber Optic ADSS Outdoor Cable, Multi Loose Tube,Double Jacket, HDPE,SM 9/125 24 Core

SI Price (excl. VAT)

Call

per pcs · MOQ: 1

Stock

Actual: 0 units

Planning: 0 units

Shipping Conditions

Warranty

30 Year Manufacturer Warranty

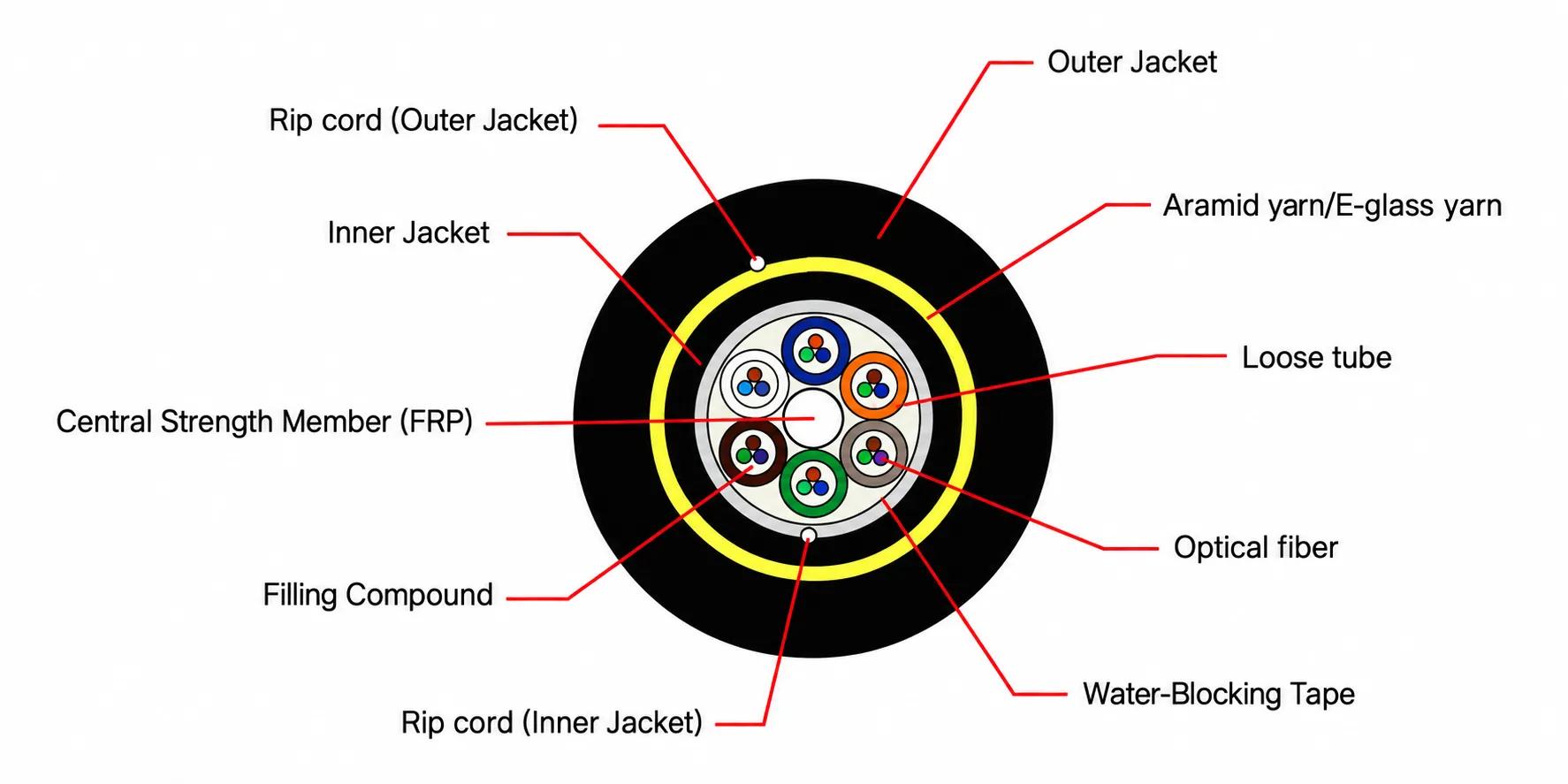

Product Highlights

Heading	Value
Product Type	ADSS Double Jacket Fiber Optic Cable
Installation Type	Aerial / Duct
Fiber Type	Singlemode
Core Count	6
Central Strength Member	FRP, 1.8 mm
Loose Tube Material	PBT
Loose Tube Diameter	2.0 mm
Fiber per Tube	6 Fibers
Loose Tube Filling	Thixotropic Jelly Compound
Protective Tape	Water-Blocking Tape + Water-Swellable Yarn
Strength Member	Aramid Yarn / E-Glass Yarn
Outer Sheath Material	UV-Proof Black HDPE
Outer Sheath Thickness	1.8 ± 0.2 mm
Inner Sheath Material	Black Polyethylene (PE)
Overall Cable Diameter	13.4–16.4 mm
Cable Weight	Approx. 180 kg/km
Short-Term Tensile Load	5000 N
Long-Term Tensile Load	4000 N
Maximum Crush Resistance	3400 N / 10 cm
Span Length	40–80 m
Operating Temperature	-40°C to +70°C
Installation Temperature	-40°C to +70°C
Storage Temperature	-40°C to +75°C
Maximum Pole Span	80 m at 126 km/h Wind Speed
Minimum Bending Radius – Installation	20 × Cable Diameter
Minimum Bending Radius – Operation	10 × Cable Diameter
Rip Cord	2 Cords, Polyester or Aramid Yarn
Jacket Type	Double Jacket
