F-ML-ADSS9-96-FR-SJ

Name: F-ML-ADSS9-96-FR-SJ
Brand: FOCOMM
SKU: FFB-085
Availability: OutOfStock

SKU: FFB-085

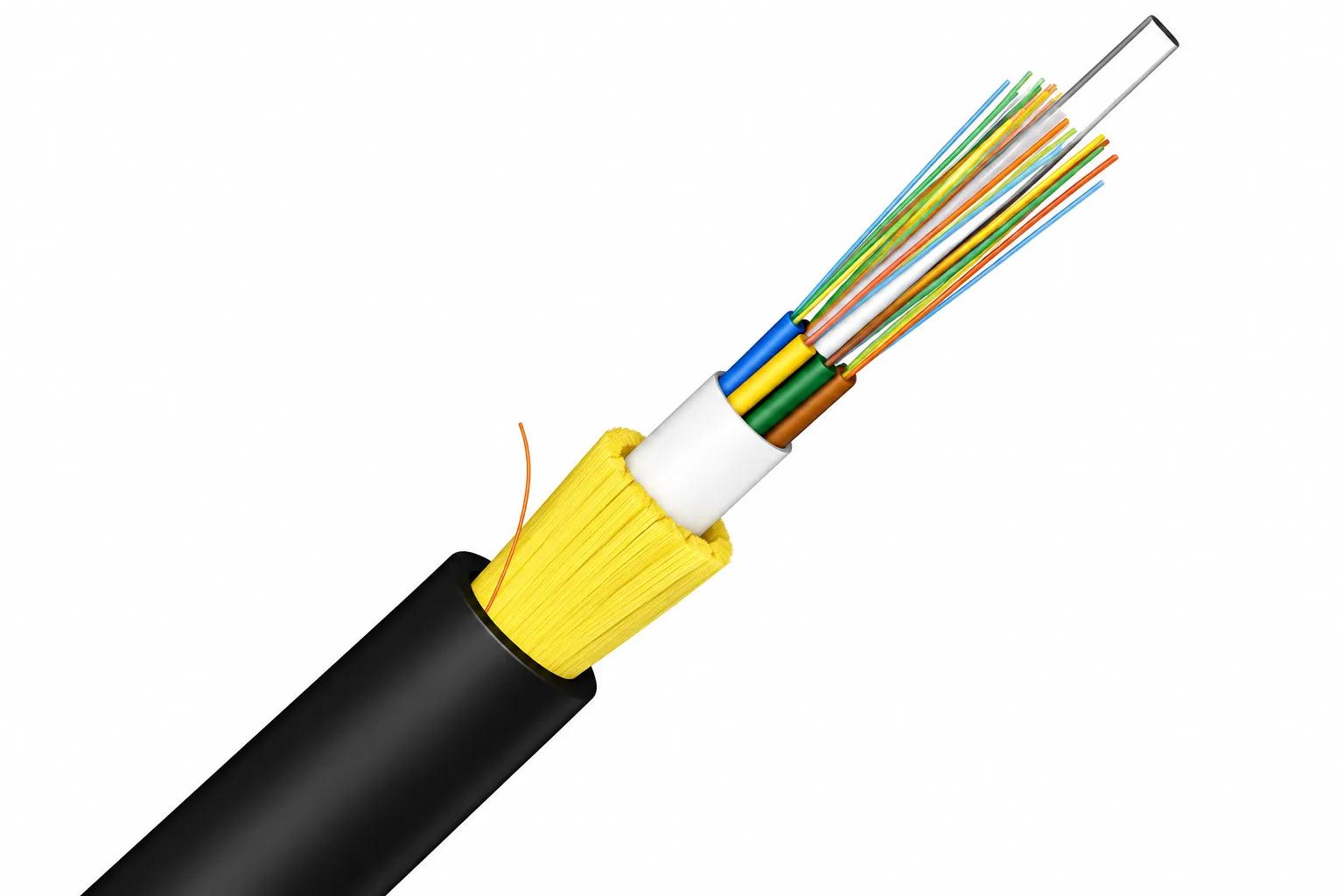

Fiber Optic ADSS Outdoor Cable, Multi Loose Tube, Single Jacket,Flame Retardant,SM 9/125 120 Core

SI Price (excl. VAT)

Call

per pcs · MOQ: 1

Stock

Actual: 0 units

Planning: 0 units

Shipping Conditions

Warranty

30 Year Manufacturer Warranty

Product Highlights

Heading	Value

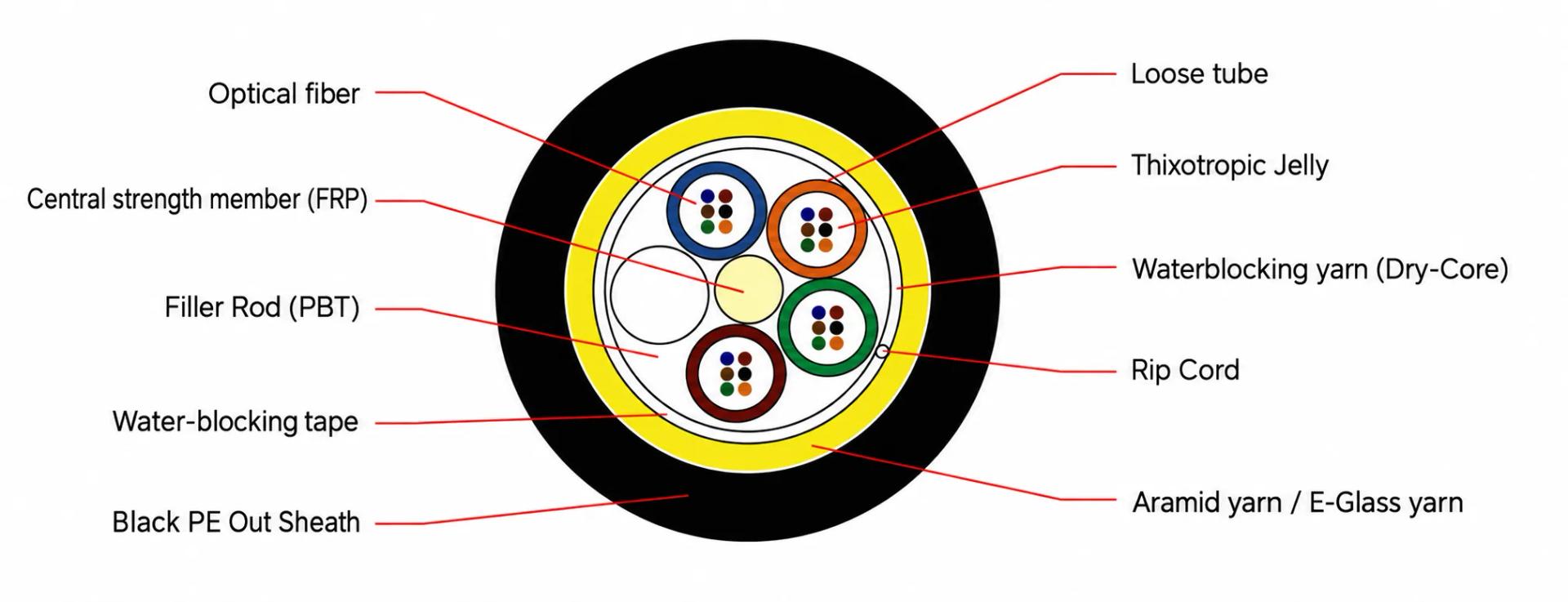

Product Type	ADSS Fiber Optic Single Jacket Cable
Installation Type	Aerial / Duct
Fiber Type	Singlemode
Fiber Standard	ITU-T G.652D / G.657A2
Core Elements	5
Central Strength Member	FRP
Central Strength Member Diameter	0.5 mm
Loose Tube Material	PBT
Loose Tube Diameter	2.0 ± 0.2 mm
Fiber per Tube	6 Fibers
Loose Tube Filling	Thixotropic Jelly
Water Blocking	Water-Blocking Tape + Water-Swellable Yarn / E-Glass Yarn
Water Blocking Tape Thickness	0.3 ± 0.05 mm
Strength Member	Aramid Yarn
Outer Sheath Material	UV-Proof Black HDPE
Outer Sheath Thickness	1.8 ± 0.2 mm
Short-Term Tensile Load	4000 N
Long-Term Tensile Load	1800 N
Crush Resistance	2200 N / 10 cm
Overall Cable Diameter	9.2 ± 0.3 mm
Cable Weight	Approx. 43 ± 10 kg/km
Span Length	40–80 m
Operating Temperature	-40°C to +70°C
Storage Temperature	-40°C to +75°C
Installation Temperature	-40°C to +70°C
Relative Humidity	Up to 90%, No Frost
Maximum Wind Speed	126 km/h
Minimum Bending Radius – Installation	20 × Cable Diameter
Minimum Bending Radius – Operation	10 × Cable Diameter
Rip Cord	1 Cord, Polyester or Aramid Yarn
