| Heading | Value |

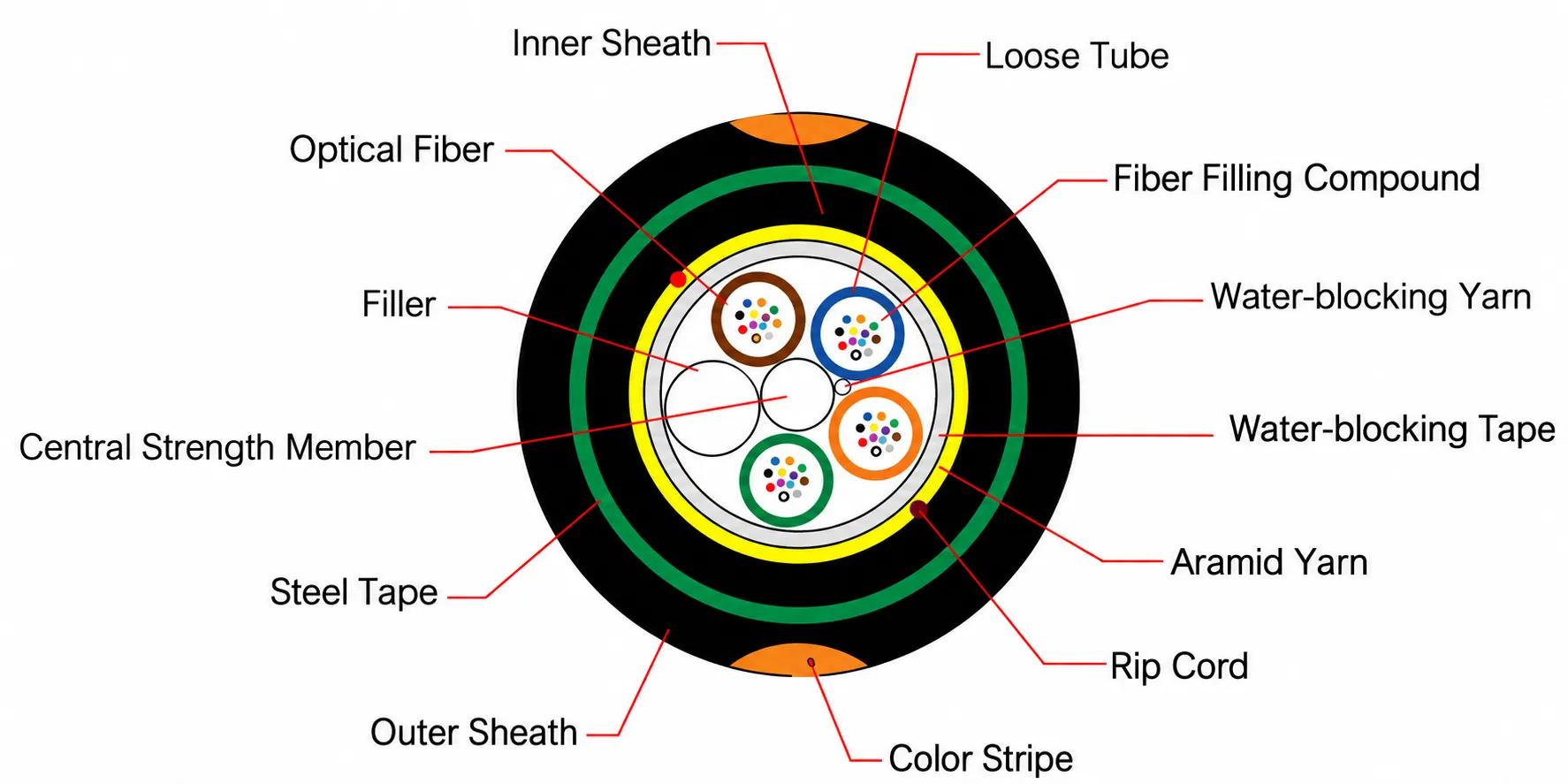

| Product Type | ARSS Fiber Optic Double Jacket Cable |
| Cable Type | ARSS-DJ |
| Installation Type | Aerial / Duct |
| Fiber Type | Singlemode |
| Available Fiber Count | 4 / 24 / 48 Fibers |
| Fiber Material | Ge-Doped Fused Silica |
| Central Strength Member | FRP |
| Loose Tube Material | PBT |
| Loose Tube Filling | Thixotropic Gel |
| Water Blocking | Water-Blocking Tape + Water-Swellable Yarn |
| Filler Material | Polypropylene (PP) |
| Additional Strength Member | Aramid Yarn or Equivalent |
| Armor Material | Corrugated Steel Tape with Polymer Coating |
| Inner Sheath Material | Black PE / MDPE |
| Inner Sheath Thickness | Minimum 1.0 mm |
| Outer Sheath Material | UV-Resistant Black HDPE |
| Outer Sheath Thickness | Minimum 1.5 mm |
| Rip Cord | 2 Polyester Rip Cords |
| Color Stripe | 2 Orange Stripes |
| Span Length | 40–100 m |
| Wind Resistance | ≥ 126 km/h |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +75°C |
| Cable Diameter – 4 Fiber | Approx. 12.3 mm |
| Cable Diameter – 24 Fiber | Approx. 12.3 mm |
| Cable Diameter – 48 Fiber | Approx. 13.0 mm |
| Maximum Tensile Load – Installation | 3600 N |
| Maximum Tensile Load – Operation | 2500 N |
| Maximum Crush Resistance | 3400 N / 10 cm |
| Minimum Bending Radius – Installation | 20 × Cable Diameter |
| Minimum Bending Radius – Operation | 10 × Cable Diameter |
