| Heading | Value |

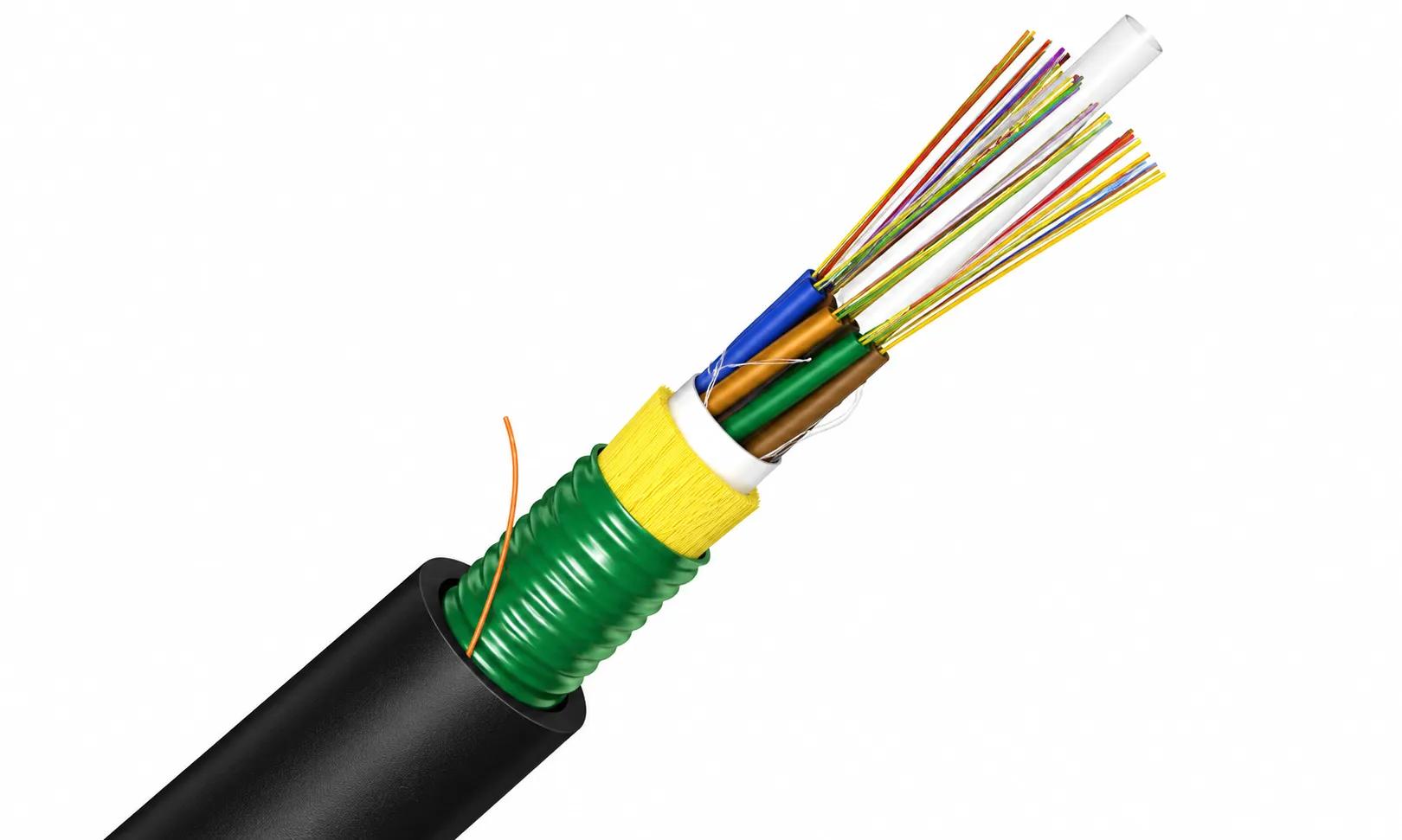

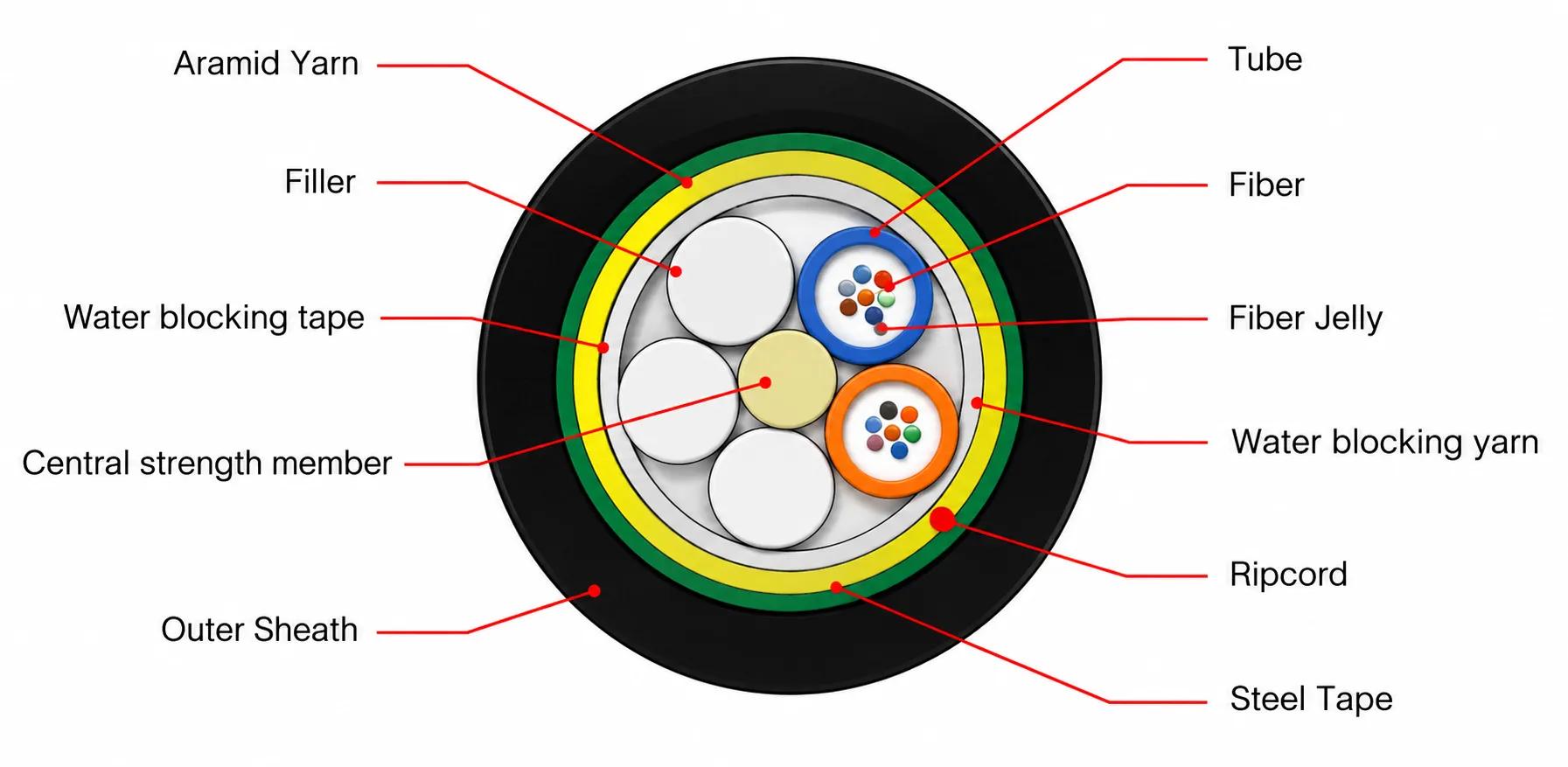

| Product Type | ARSS Fiber Optic Single Jacket Cable |
| Cable Type | Anti-Rodent Self-Support (ARSS) |
| Installation Type | Aerial / Duct |
| Fiber Type | Singlemode |
| Fiber Count | 6–96 Fibers |
| Fiber Material | High-Grade Silica / Compound Silica Glass |
| Loose Tube Type | Multi-Twisted Tube |
| Loose Tube Material | PBT |
| Loose Tube Filling | Thixotropic Jelly Compound |
| Fiber per Tube | 6 / 12 Fibers |
| Filler Rod | Plastic Rod, Natural Color |
| Filler Rod Diameter | 2.2 ± 0.1 mm |
| Stranding Method | Reverse Oscillating Lay (ROL), SZ Direction |
| Central Strength Member | FRP |
| Water Blocking | Dry-Core Technology with Water-Swellable Tape / Yarn |
| Water Blocking Tape Thickness | 0.3 ± 0.05 mm |
| Additional Strength Member | Water-Blocking E-Glass Yarn |
| Armor Material | Corrugated Chrome Steel Tape with Polymer Coating |
| Steel Tape Thickness | 0.25 mm |
| Polymer Coating Thickness | 0.05 mm |
| Outer Sheath Material | UV-Proof Black HDPE / Flame-Retardant PE |
| Outer Sheath Thickness | Min. 1.6 mm (6–144 Fibers) |
| Cable Diameter | Approx. 10.3–12.4 mm |
| Cable Weight | Approx. 90–135 kg/km |
| Operating Temperature | -40°C to +75°C |
| Installation Temperature | -40°C to +75°C |
| Storage / Shipping Temperature | -40°C to +75°C |
| Maximum Span Length | 40–80 m |
| Maximum Wind Velocity | 126 km/h |
| Maximum Tensile Load – Installation | 3600 N (6–96 Cores) |
| Maximum Tensile Load – Operation | 2500 N (6–96 Cores) |
| Maximum Crush Resistance | 3400 N / 10 cm |
| Minimum Bending Radius – Installation | 20 × Cable Diameter |
| Minimum Bending Radius – Operation | 10 × Cable Diameter |
