| Heading | Value |

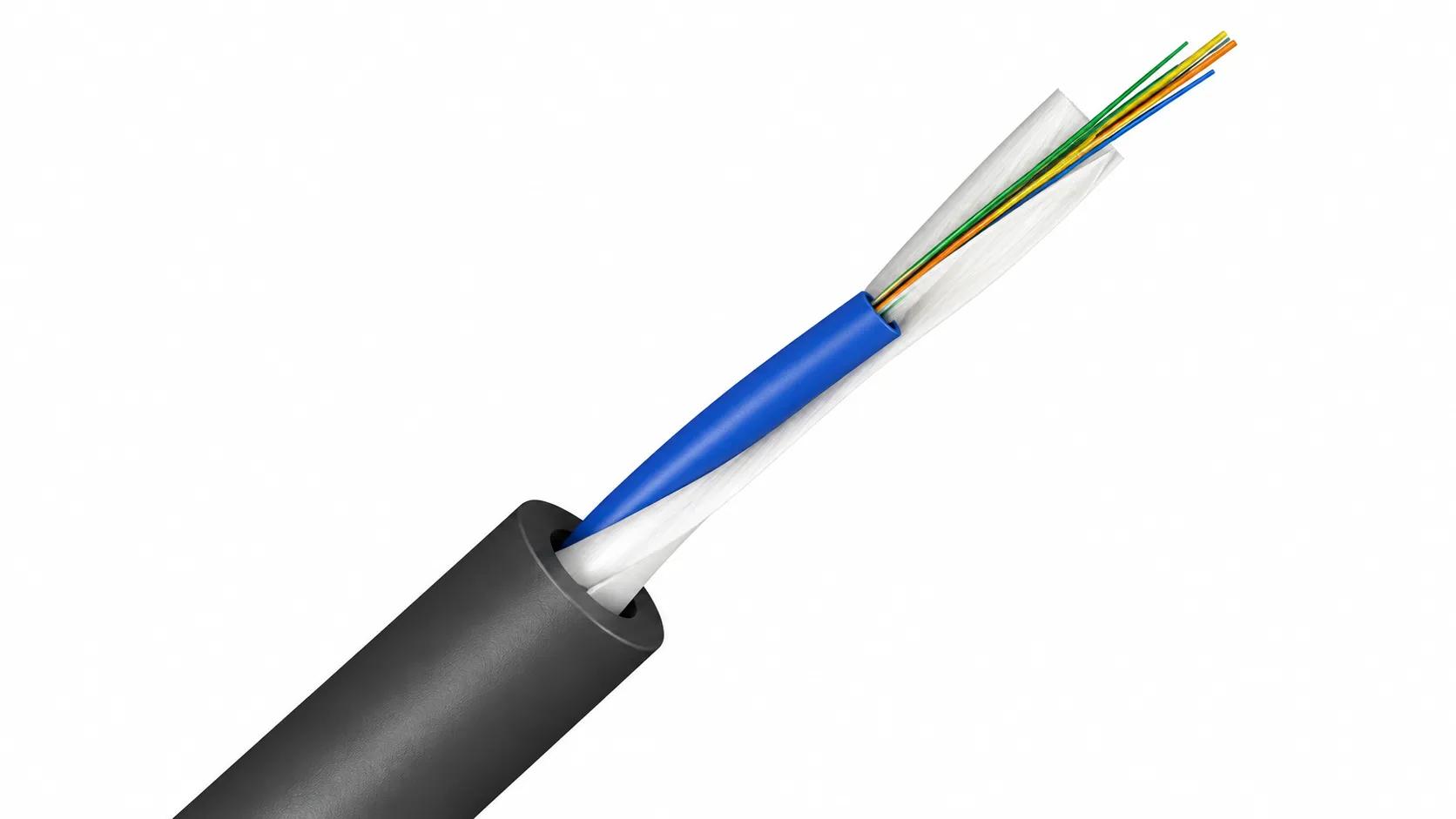

| Product Type | Mini ADSS Fiber Optic Single Jacket Cable |
| Fiber Type | Singlemode |
| Fiber Standard | ITU-T G.652D / ITU-T G.657A2 |
| Fiber Count Options | 4 / 6 / 8 / 12 Fibers |
| Fiber Material | High-Grade Silica / Compound Silica Glass |
| Mode Field Diameter | 9.2 ± 0.4 µm @ 1310 nm |
| Cladding Diameter | 125 ± 1 µm |
| Core-Cladding Concentricity Error | ≤ 0.5 µm |
| Cladding Non-Circularity | ≤ 1.0% |
| Primary Coating Diameter | 245 ± 5 µm |
| Cable Diameter | Approx. 6.5 mm |
| Cable Weight | Approx. 43 ± 10 kg/km |
| Sheath Material | UV-Proof Black HDPE |
| Sheath Thickness | ≥ 1.0 mm |
| Buffer Tube Material | PBT / Polycarbonate or Equivalent |
| Water Blocking | Dry Swellable Tape / Yarn with SAP |
| Water Blocking Tape Thickness | 0.3 ± 0.05 mm |
| Filler Rod Material | FRP |
| Additional Strength Member | Aramid Yarn |
| Ripcord | 2 Aramid Cords |
| Maximum Pole Span Length | 40 m |
| Maximum Wind Velocity | 126 km/h |
| Maximum Tensile Load – Installation | 1200 N |
| Maximum Tensile Load – Operation | 600 N |
| Maximum Crush Resistance | 2200 N / 10 cm |
| Minimum Bending Radius – Installation | 20 × Cable Diameter |
| Minimum Bending Radius – Operation | 10 × Cable Diameter |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +75°C |
| Installation Temperature | -40°C to +70°C |
| Maximum Attenuation @ 1310 nm | 0.33 dB/km |
| Maximum Attenuation @ 1550 nm | 0.20 dB/km |
| Jacket Type | Single Jacket |
