F-MN-ARSS9-04-H-SJ

FOCOMM○ Pre-order

F-MN-ARSS9-04-H-SJ

SKU: FFB-063

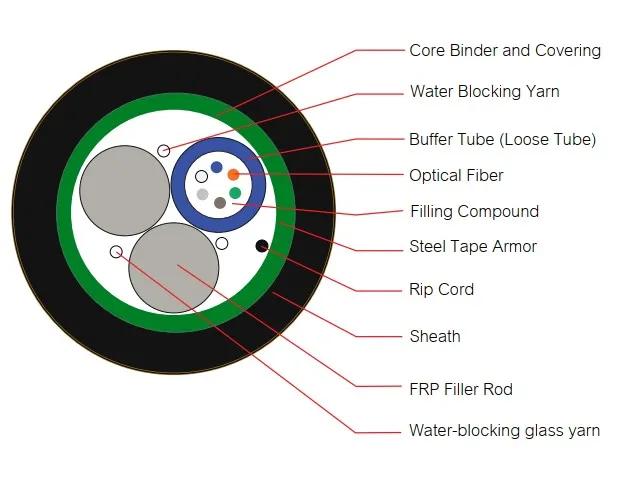

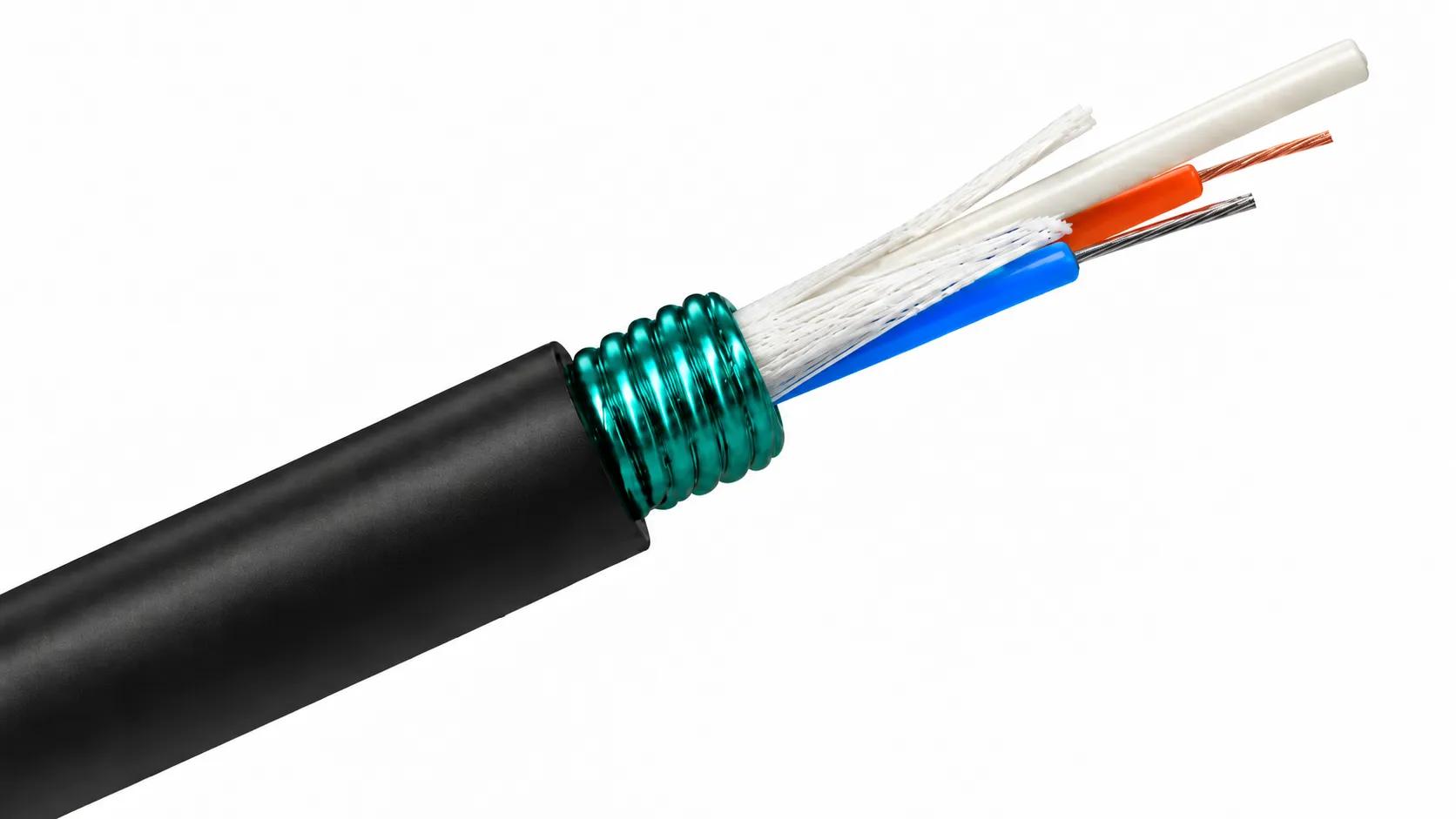

Fiber Optic Mini ARSS Outdoor Cable, 3 Tube, Armored, Single Jacket, HDPE,SM 9/125 4 Core

SI Price (excl. VAT)

฿34

per pcs · MOQ: 1

Stock

Actual: 0 units

Planning: 0 units

Shipping Conditions

Contact us for shipping details.

Warranty

30 Year Manufacturer Warranty

1

Product Highlights

Heading	Value
Product Type	Mini ARSS Fiber Optic Cable
Installation Type	Aerial
Rodent Protection	Corrugated Steel Tape Armor
Fiber Type	Singlemode / Multimode
Fiber Standard	ITU-T G.652D / G.657A2 / G.651
Fiber Count	1–12 Fibers
Loose Tube Material	PBT / PP
Strength Member	FRP
Additional Strength Member	Water-Blocking E-Glass Yarn
Core Binding Material	Polyester Yarn
Ripcord	1 Aramid Cord
Cable Sheath Material	UV-Proof Black HDPE
Cable Sheath Thickness	1.0–1.6 mm
Cable Diameter	Approx. 8.5 mm
Maximum Pole Span Length	40–80 m
Maximum Wind Velocity	126 km/h
Maximum Tensile Load	≥ 900 N
Maximum Crush Resistance	≥ 1,000 N/100 mm
Installation Temperature	-40°C to +70°C
Operating Temperature	-10°C to +75°C
Relative Humidity	Up to 90%, Non-Frost
Operating Wavelength	1310 nm / 1550 nm
Maximum Attenuation @ 1310 nm	≤ 0.35 / ≤ 0.33 dB/km
Maximum Attenuation @ 1550 nm	≤ 0.21 / ≤ 0.19 dB/km
