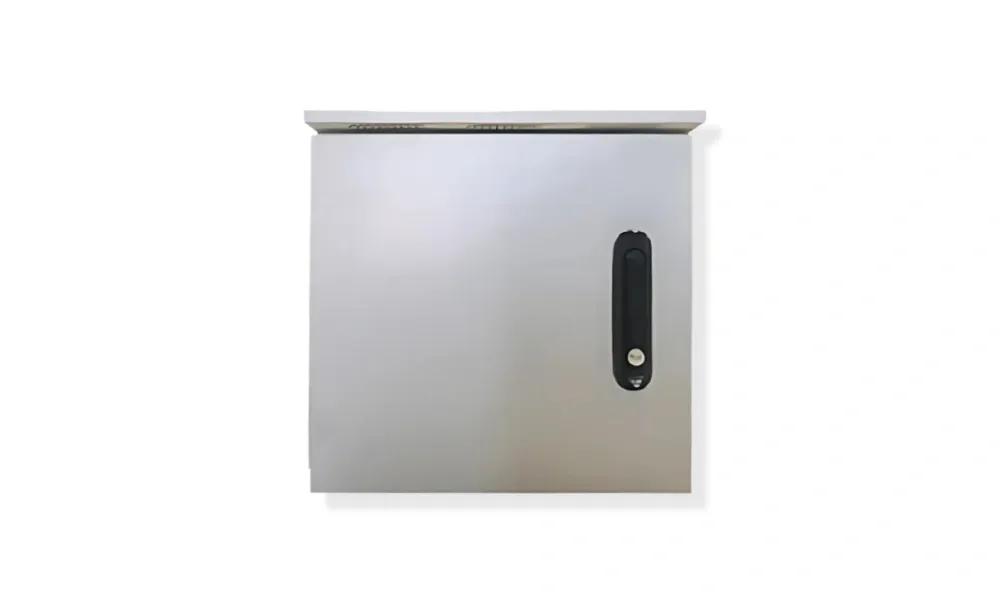

| Installation Type | Wall-Mounted, Outdoor Use |
| Applications | CCTV Systems, Fiber Optic Distribution, Industrial Media Converters, Ethernet Switches |
| Cabinet Material | Aluminum |
| Cabinet Thickness | 1.0 mm |
| Dimensions (W × H × D) | 400 × 400 × 230 mm |
| Ground Wire | Green-Yellow, 2.5 mm² |
| Surface Finish | Electrostatic Powder Coating |
| Cabinet Color | Dark Gray |
| Rain Protection | Integrated Rainproof Top Cover |
| Door Lock | Push-Handle Lock with Flush Cap |
| Ventilation | Ventilation Fins on Both Sides |
| Pole-Mount Bracket | 2.0 mm Thick Rear Steel Bracket |
| Fan Mounting | Supports 4" Blower Fan |
| Built-in Fan | 1 Fan |
| Label Area | Optional Sticker / Label Area |
| Water Sealing | Rubber Gasket Sealing on Top Cover |
| Mounting Plate | Removable Aluminum Plate, 1.2 mm Thick |
| DIN Rail Support | Supported |
| Compatible Components | Industrial Media Converters and Ethernet Switches |
| Internal Accessories Support | Ground Wire, Splice Tray, Cable Guide, Circuit Breaker |
| Rear Door Holes | 2 Holes |
| Rear Cable Access | 2 Cable Access Holes |
| Bracket Thickness | 2.0 mm |
