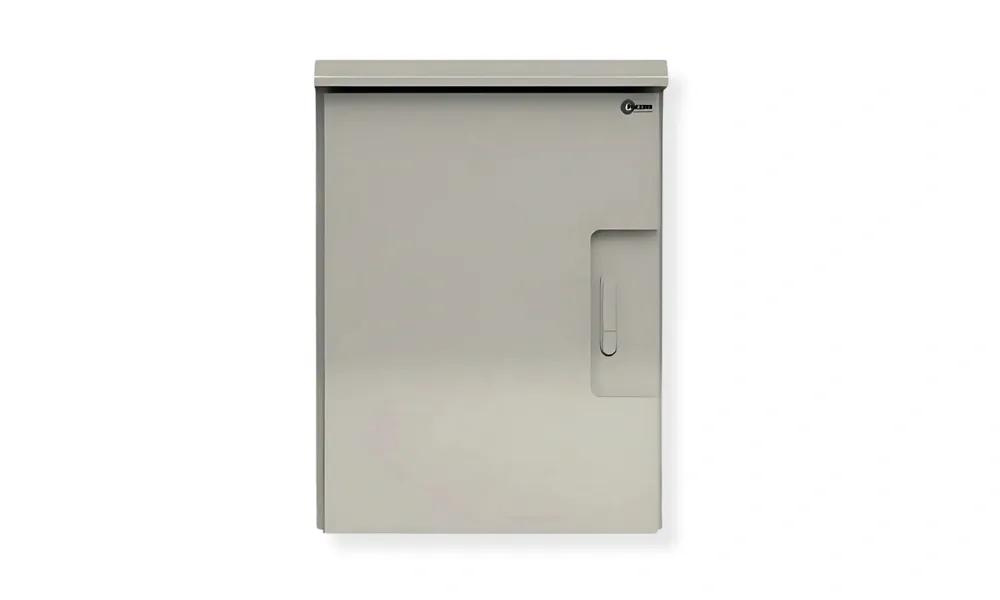

| Cabinet Type | Two-Tier Outdoor Cabinet |
| Installation Type | Wall-Mounted / Suspension Type |
| Application | CCTV, Fiber Optic Distribution, Industrial Media Converter, Industrial Ethernet Switch |
| Heat & Sun Protection | Two-Tier Design for Outdoor Protection |
| Cabinet Material | Alumimium |
| Cabinet Thickness | 2.0 mm |
| Dimensions (W × H × D) | 68 x 43 x 20 cm |
| Surface Finish | Electrostatic Powder Coating |
| Coating Standard | ASTM Standard |
| Cabinet Color | Dark Gray |
| Door Lock | Push Handle Lock with Flush Cap |
| Ventilation | Ventilation Fins on Both Sides |
| Door Hinge | Aluminum Hinge |
| Rear Support Bracket | 2.0 mm Thick Steel |
| Cooling Support | Supports 4" Blower Fan |
| Water Protection | CNC Foam Gasket Sealing |
| Internal Mounting Plate | Removable 1.5 mm Plate |
| DIN Rail Support | Supported |
| Cable Entry Holes | 3 Holes, 3/4" and 1" |
| Cable Management | Internal Cable Wire Guide |
| Mounting Configuration | Supports Two-Layer Stacked Installation |
| Adapter Plate | 2 Adapter Snap Plates |
| Fiber Capacity | Up to 24 Cores |
| Grounding | Ground Connection Between Cabinet and Lid |
| Internal Accessories Support | Ground Wire, Splice Tray, Cable Guide, Cable Management, Surge Protection, Breaker |
| Rain Protection | Protective Roof |
