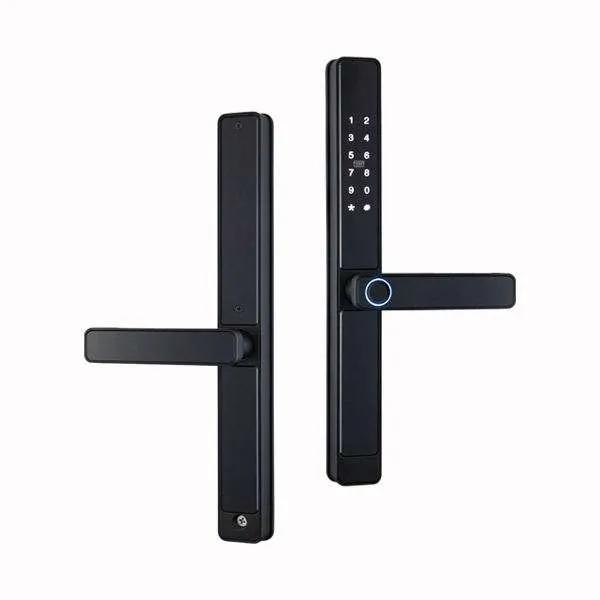

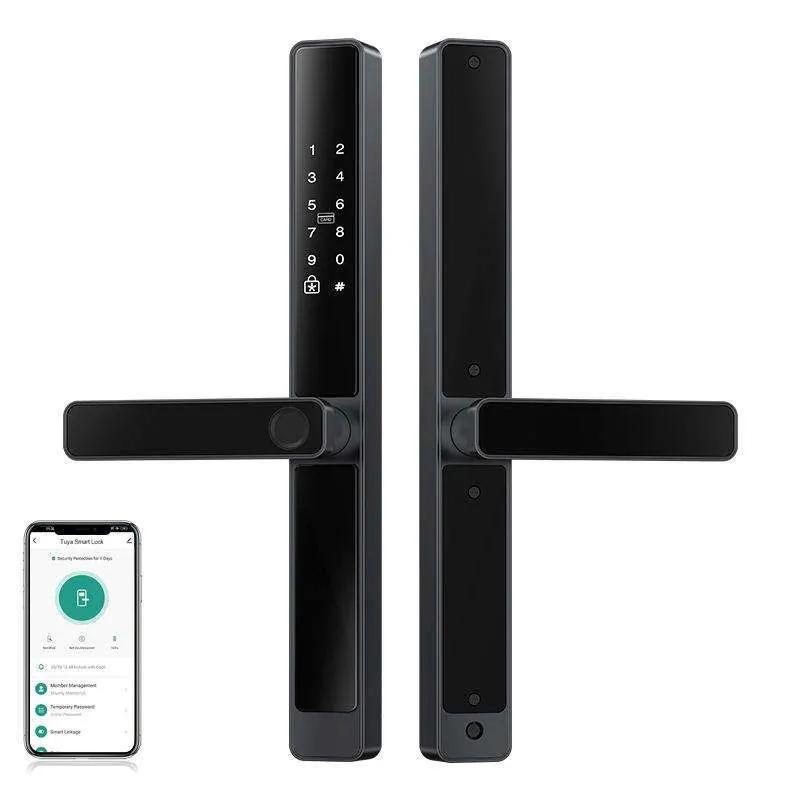

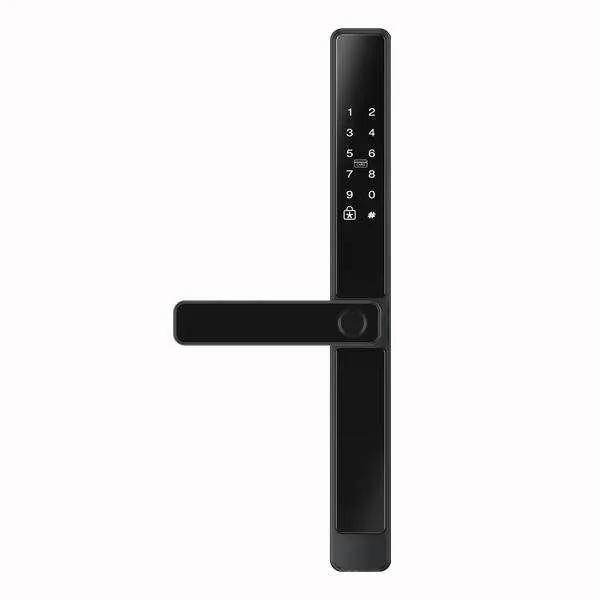

| Model | YGS-TX1 |
| Lock Type | Smart Digital Door Lock |
| Material | Aluminum Alloy |
| Color | Black |
| Panel Dimensions | 332 × 37 mm (L × W) |
| Waterproof Rating | IP65 |
| Unlock Methods | Bluetooth APP / M1 Card / Password / Fingerprint / Wristband / Mechanical Key |
| APP Support | TUYA / TTLOCK / HXJOT (Depending on Version) |
| Fingerprint Sensor | One-Touch Biometric Fingerprint |
| Power Supply | DC 6V, 4 × Alkaline Batteries |
| Battery Life | 5,000–6,000 Unlocking Cycles |
| Static Current | < 20 μA |
| Dynamic Current | < 150 mA |
| Card Reading Distance | 0–5 cm |
| Reading / Writing Time | < 1 s |
| Card Reading Method | Contactless Induction |
| Security Features | Fake Password / Electronic Deadbolt / Automatic Lockout |
| Incorrect Attempt Protection | 3-Minute Lockout After 5 Failed Attempts |
| Emergency Access | Mechanical Key / USB Backup Power |
| Date Keeping | Over 10 Years |
| Operating Temperature | -15°C to +55°C |
| Operating Humidity | 20–95% RH |
| Storage Temperature | -20°C to +55°C |
| Storage Humidity | 10–90% RH |
