SFP Industrial Module Dual Fiber, 1.25Gbps 1310nm 40km

FEATURE
– Supports 1.25Gbps/1.0625Gbps bit rates
– Duplex LC connector
– Hot pluggable SFP footprint
– 131Onm FP laser transmitter and PIN photo-detector
– Applicable for 10km SMF connection
– Low power consumption, < 0.8W
– Digital Diagnostic Monitor Interface
– Compliant with SFP MSA and SFF-8472
– Very low EMI and excellent ESD protection
– Operating case temperature: Industrial:-40 to 85 *C
APPLICATIONS
– Gigabit Ethernet
– Fiber Channel
– Switch to Switch interface
– Switched backplane applications
– Router/Server interface
– Other optical transmission systems
OVERVIEW
MC-ISFP-LX-SM-0210 , SFP transceivers are high performance , cost effective modules supporting dual data-rate of

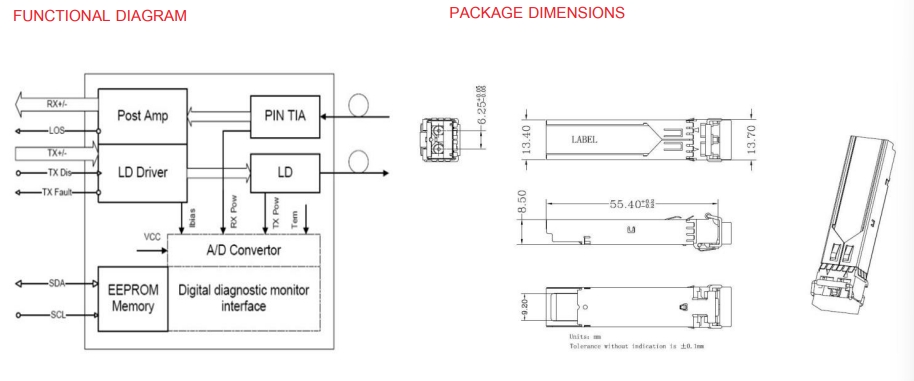

1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.The transceiver consists of three sections: a FP laser transmitter,
a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety
requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please
refer to SFP MSA.
