The 8-Channel Mixer Pre-Amplifier offers versatile connectivity with 10 input channels, including 5 microphones and 3 standard signal lines. Its 1U aluminum alloy design supports rack or desktop installation. Notably, it prioritizes the first microphone, provides adjustable chime volume, and offers independent volume controls for each input. With clear signal indicators and adjustable frequency controls, it’s a flexible solution for various audio setups.
| Product Specifications |
| Parameter |
Value |
| Power Supply |
AC 200V-240V, 50Hz |
| Power Consumption |
≤20W |
| Frequency Response |
20Hz~20kHz |
| Signal-to-Noise Ratio (Mic Input) |
≥50dB |
| Signal-to-Noise Ratio (Aux Input) |
≥80dB |
| Tone Control (Bass) |
±10dB at 100Hz |
| Tone Control (Treble) |
±10dB at 10kHz |
| Total Harmonic Distortion (THD) |
≤0.5% at 1kHz |
| Interface |
1×TS Input Jack (Unbalanced), 4×TS&XLR Input Jack (Unbalanced),
3×Dual RCA AUX Input Jack, 2×Dual RCA Emergency Input Jack,
2×Dul RCA AUX Output Jack |

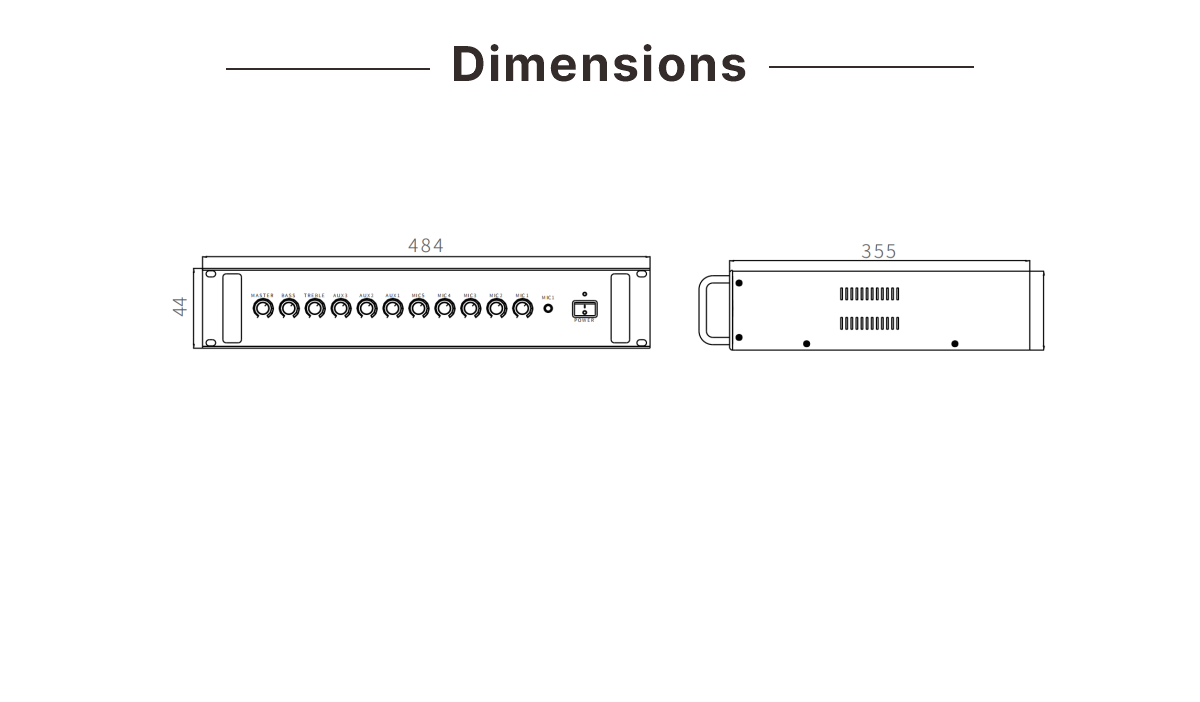

| Dimensions |
484×35×44mm |
| Weight |
5.8kg |
| Standard Accessories |
1×Quick Installation Guide, 1×Quality Certificate, 1×Warranty Card, 1×Audio Cable |
| Optional Accessories |
IEC C13 Power Cord (US/EU/UK/AU) |
