| Product Specifications |
| Power Supply |
DC 24V/2.7A |
| Power Consumption |
≤60W |
| Network Protocol |

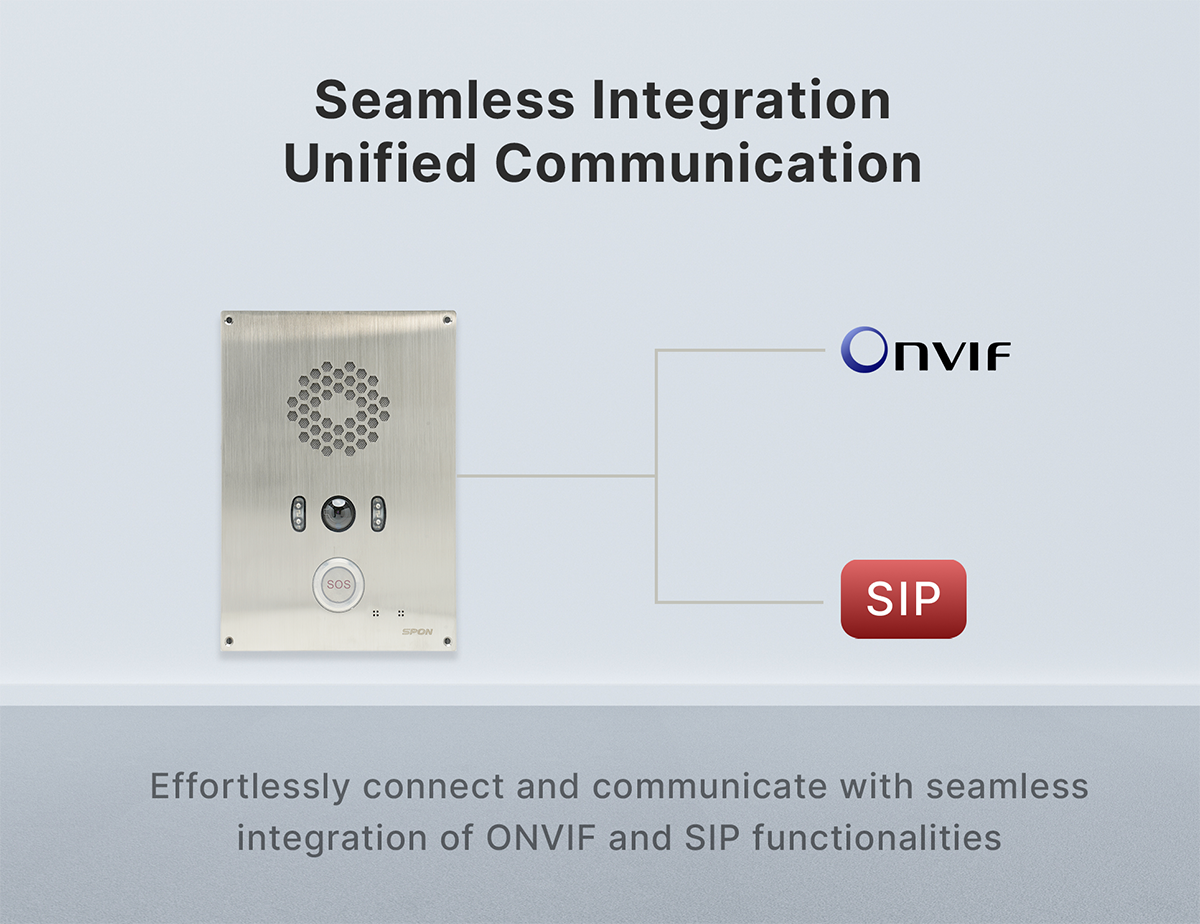

SIP 2.0 (RFC 3261), HTTP, TCP/IP, UDP, ARP, ICMP, IGMP |
| Audio Sampling Rate |
8kHz-44.1kHz, 16bit |
| Transmission Bit Rate |
8kbps-320kbps |
| Video Transmission Bit Rate |
512Kbps-4Mbps |
| Video Coding |
VGA/720/1080P |
| S/N (Signal-to-Noise) Ratio |
≥80dB |
| Frequency Response |
100Hz-20KHz(MP3) |
| Interface |

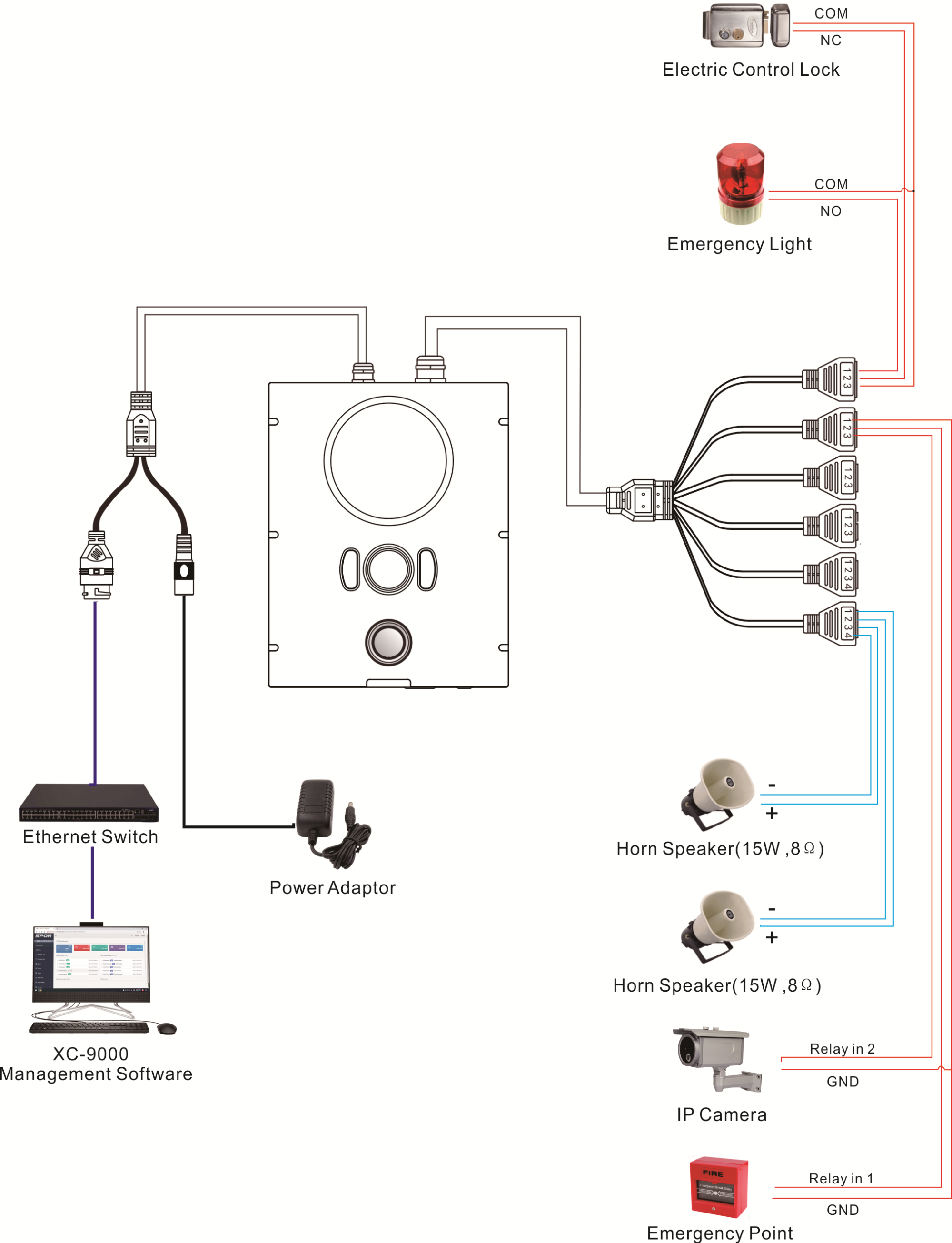

1×RJ45 Ethernet Port, 2×Relay input, 1×Relay Output, 2×Line input, 1×Line Output, 2×Speaker Output (8Ω/20W), 1×Power Input |
| IP Rating |
IPX5 |

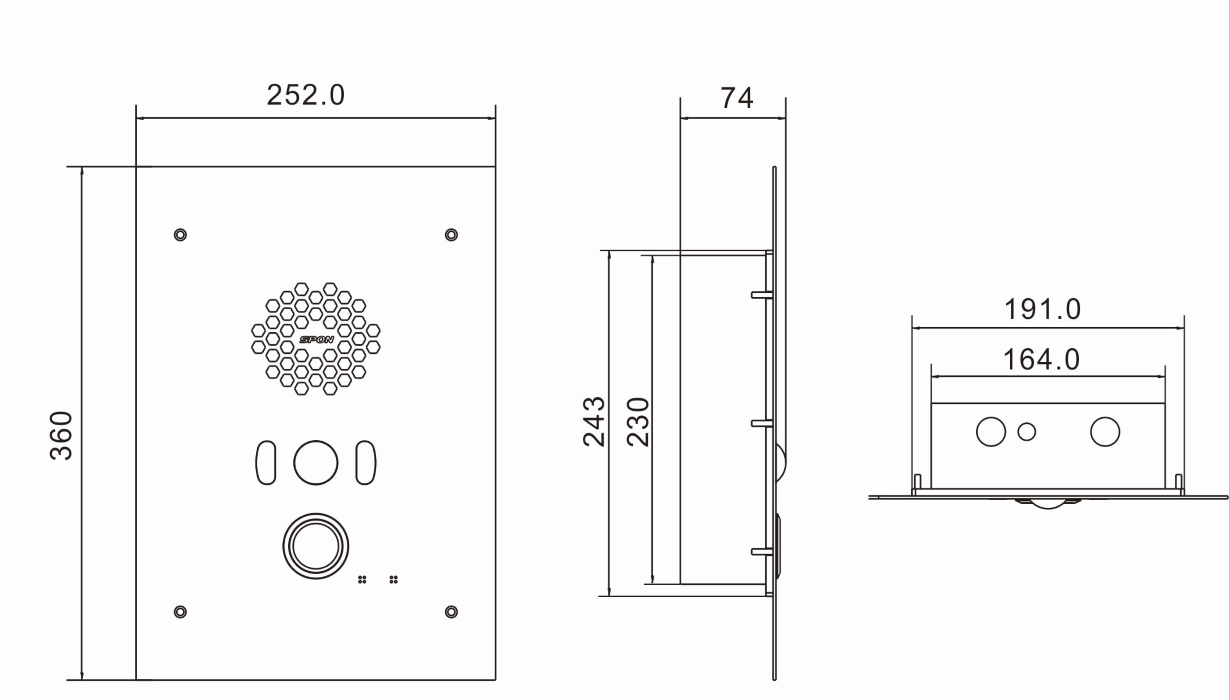

| Dimensions |
360×252×74mm |
| Weight |
5kg |
| Standard Accessories |
1×Waterproof Connector, 4×3-Pin Terminal Block Connector, 2×4-Pin Terminal Block Connector, 1×Installation Manual, DC 24V/2.7A Power Adapter |
| Optional Accessories |

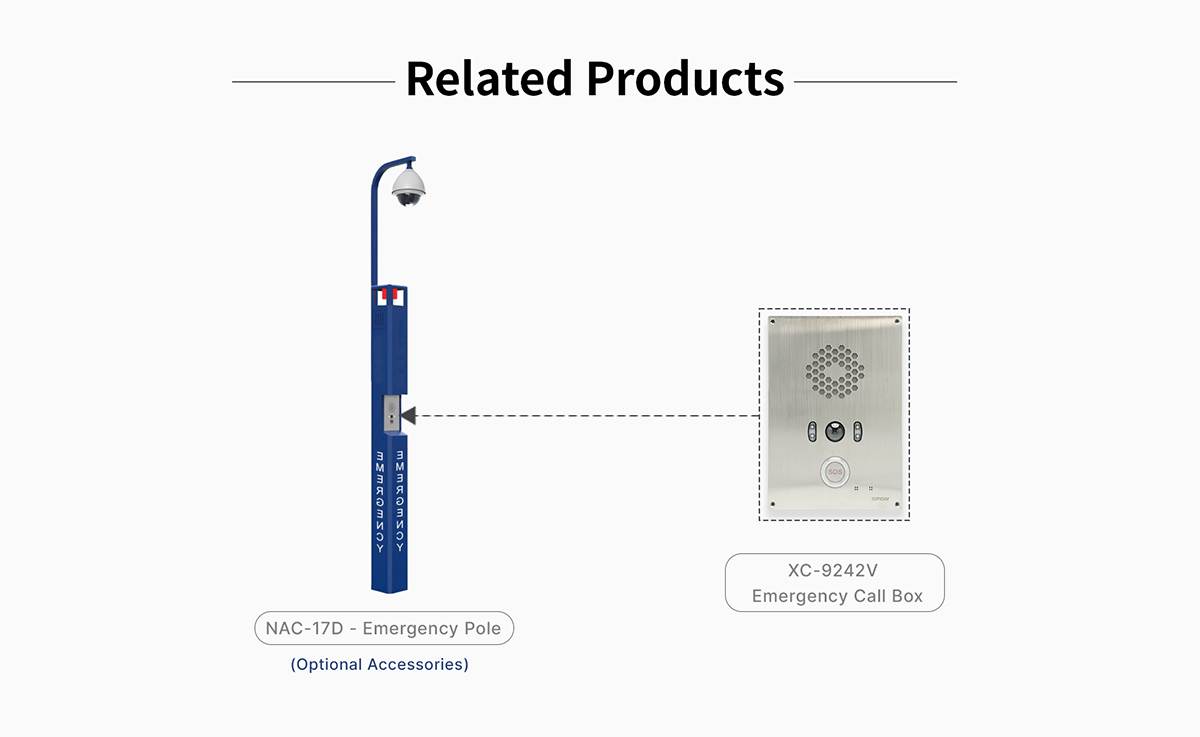

IEC C13 Power Cord (US/EU/UK/AU), Emergency Pole NAC-17D |
