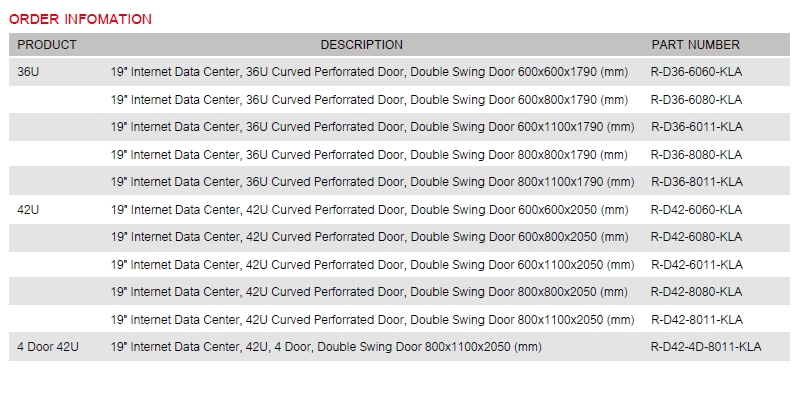

19 IDC, 36U Curved Perforrated Door, Double Swing Door 600×800

APPLICATION
Widely applied in Finance, Securities and Data Centre and adpted
byprofessional servers’network providers, as IBM, SUN, HP, COMPAQ,
DELL, etc .
MATERIALS
Electro-galvanized Cold-rolled steel sheet. Thickness for frame 2.0mm,
mounting rall 2.0mm, side panel 1.5mm, fixed shelf 1.5mm
STANDARD
Comply with ANSI/EIARS-310-D, BS 5954, DIN4 1491;PART 1, IEC60297-2,
DIN4 1494;PART7,GB/T3047.2-92 standard. Compatible with metric,
ETSI and 19 inch international standard.
FEATURE
– Surface finish: degreasing, pickling, phosphoric, powder coating .
The thickness of powder coating is 80pm-100pm.

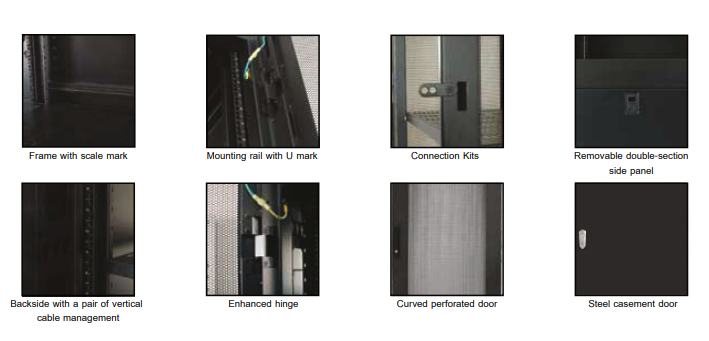

– Curved perforated front door and double-section rear door enable equipment
protection, reliable operation with ventilation rate above 80%_
– Double-section side panels, each panel can be easily assembled separately.
– Top and bottom wiring channel can be closed and adjustable.
– Backside with a pair of vertical cable management.
– Mounting rail with U mark.
– Efficient and solid cabinet connection.
– With earthing kits.
– Advanced lock.
– Optional plinth to meet under-base wiring, ventilation and rat-proof.
– Adjustable feet and heavy duty castors are available at the same time , static loading: 1000KG.
– Full range of optional accessorles.
