FTTX Strand Drop Wire Flat 4 Core

฿9.00

Lead time :

ANSI/TIA-568-C.3, ANSI/TIA/EIA-568-B.3, ISO/IEC 118012002, ANSI/ICEA 696, Telcordia (Bellcore) GR-20-CORE, ITU-T G.657A1/G.657A2 (Singlemode),
ITU-T G.651 (Multimode), IEC 60332-1, IEC 60332-2& IEC 60332-3, IEC 60793/60794, ANSI/ICEA 596,EIA/TIA-455, UL, RoHS Compliant 2002/95/EC
IEEE802.3z, IEEE802.3ae, IEEE802.3(LAN, EthernetFast Ethernet,Gigabit thenetand10Gigabit Ethemnet40-100 Gbps)



Warranty : 3 years

Warehouse : BKK

Loading...

Download Datasheet

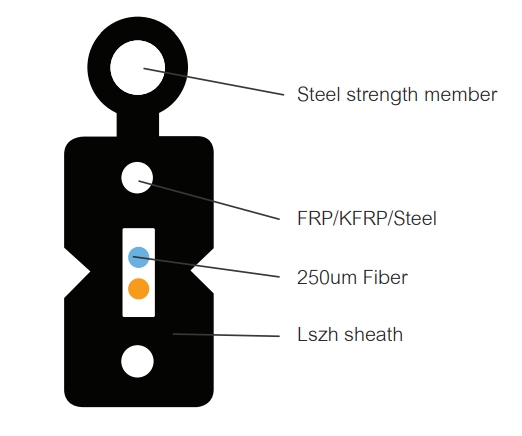

FIBER TO THE HOME AERIAL CABLE (SELF SUPPORT FTTH)
FTTH Cable directly connected to their homes, their bandwidth, wavelength
and transmission technology type are not restricted. The optical fiber unit id
positioned in the centre. Two parallel strength member are placed at the two
sides. A steel wire as the additional strength member is alsoapplied ,then,
the cable is completed with a black HDPE sheath.
CHARACTERISTIC
– Good mechanical and enviromental characteristic
– Anti-UV charateristics meet the requirements of relevant standards
– The mechanical charateristics meet the requirements of relevant standards
– Soft flexiable ,easy to lay and splice,and with big capacity data transmission
– Meet various requirements of market and clients
– Two FRP strength member protects the fiber with tensile strength
– Low Smoke Zero Halogen (LSZH) outer jacket
APPLICATION
– Adopted to outdoor level and vertical distribution.
– Suitable for connect with communication equipment.
– Long distance and local area network communication.

STANDARD
ANSI/TIA-568-C.3, ANSI/TIA/EIA-568-B.3, ISO/IEC 118012002, ANSI/ICEA 696, Telcordia (Bellcore) GR-20-CORE, ITU-T G.657A1/G.657A2 (Singlemode),
ITU-T G.651 (Multimode), IEC 60332-1, IEC 60332-2& IEC 60332-3, IEC 60793/60794, ANSI/ICEA 596,EIA/TIA-455, UL, RoHS Compliant 2002/95/EC
IEEE802.3z, IEEE802.3ae, IEEE802.3(LAN, EthernetFast Ethernet,Gigabit thenetand10Gigabit Ethemnet40-100 Gbps)
