ANSI/TIA-568-C.3, ANSI/TIA/EIA-568-B.3, ISO/IEC 11801:2002, ANSI/ICEA 696, Telcordia (Bellcore) GR-20-CORE, ITU-T G.657A1/G.657A2 (Singlemode),
ITU-T G.651 (Multimode), IEC 60332-1, IEC 60332-2& IEC 60332-3, IEC 60793/60794, IEC60754-1&2 ,IEC61034-2, ANSI/ICEA 596,EIA/TIA-455, UL,
RoHS Compliant 2002/95/EC IEEE802.3z, IEEE802.3ae, IEEE802.3(LAN, EthernetFast Ethernet,Gigabit Ethernetand10Gigabit Ethemet40-100 Gbps)
Warranty : 3 years
Warehouse : BKK

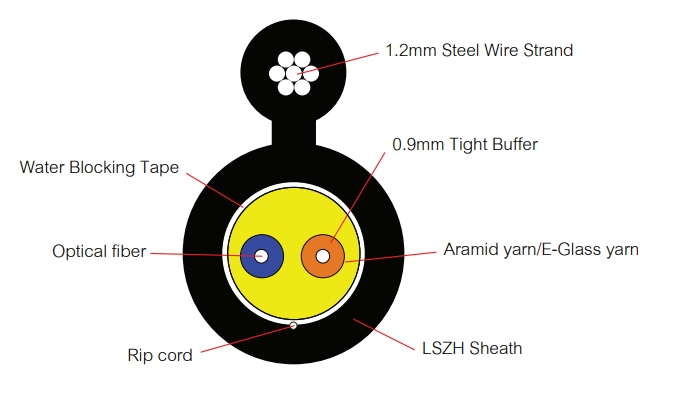

CHARACTERISTIC
– The structure is 1-4 core fibers.
– Standard steel wire
– Tight buffer
– Optical fiber
– Aramid yarn/E-Glass yarn
– Outer jacket HDPE (LSZH)
– Rip cord
– Water Blocking Tape
– Messenger wire 7 x 0.4 mm (1.2mm.)
PROPERTIES
– Excellent performance
– Low insertion loss and high return loss
– High tensile strength
– Telcorda GR326, IEC, TIA/EIA standard compliant
APPLICATION
– Communication network
– Optical distribution network
– Lan system
– FTTH
– SC APC/ UPC Connector
STANDARD
ANSI/TIA-568-C.3, ANSI/TIA/EIA-568-B.3, ISO/IEC 11801:2002, ANSI/ICEA 696, Telcordia (Bellcore) GR-20-CORE, ITU-T G.657A1/G.657A2 (Singlemode),
ITU-T G.651 (Multimode), IEC 60332-1, IEC 60332-2& IEC 60332-3, IEC 60793/60794, IEC60754-1&2 ,IEC61034-2, ANSI/ICEA 596,EIA/TIA-455, UL,
RoHS Compliant 2002/95/EC IEEE802.3z, IEEE802.3ae, IEEE802.3(LAN, EthernetFast Ethernet,Gigabit Ethernetand10Gigabit Ethemet40-100 Gbps)
