Cat5e UTP Cable, Outdoor Double Jacket, 24AWG, 350MHz,

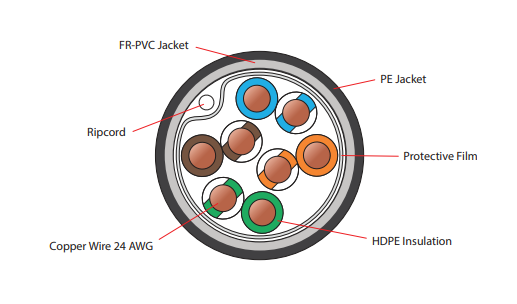

PRODUCT DESCRIPTION
4 twisted-pair cable, using solid bare copper conductor 24 AWG insulated with
HDPE-high density polyethylene. External jacket using black PE-linear low density
polyethylene UV resistant suitable for outdoor application.

APPLICATION
1000BAS-T (IEEE802.3ab Gigabit Ethemet) , 100BASE-TX (IEEE802.3u Fast Ethemet),
10BASE-T(IEEE802.3 Ethernet) ,52/155(622 Mbps and 1.2Gbps ATM, POE,
POE+(IEEE802.3af, IEEE802.3at) TP-PMD, TPDDI, ISDN, VOIP, Analog & Digital Voice,
Digital & Analog Video 4/16 Mbps Token Ring.
2.5G BASE-T (IEEEB02.3bz)

STANDARD
-ANS/TIA-568-C.2 Category 5E, ANSI-TIA/EIA-568-B.2 Category 5E,
– ISO/IEC 11801:2002 Class D, ISO/IEC 11801:2017 Class D,
– EN50173 Category 5E, EN50288-3-1, EN50173-1 Category 5e
– IEC61156-5,
– UL444. NEC800.
– NEMAWC63.1 ICEAS-90-661 Category 5E, NEMA WC 63.1 ., ASTM D 4566-9
– RoHS Compliant
– ANSI/TIA-568.2-D Category 5E

TEMPERATURE
Installation – 40 *C to 75 C
Operating – 40 ‘C to 75 C
Storage – 40 C to 80 ‘c
