Cat5e UTP Cable, Outdoor Drop Wrie, Double Jacket, 24AWG,350MHz

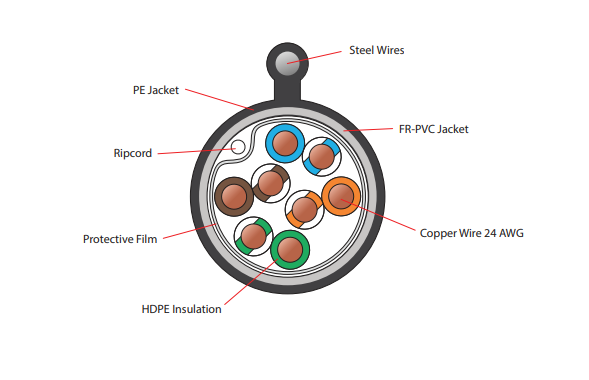

PRODUCT DESCRIPTION
4 twisted-pair cable, using solid bare copper conductor 24 AWG insulated with
HDPE-high density polyethylene. External jacket using black PE-linear low density
polyethylene UV resistant suitable for outdoor application.
APPLICATION
1000BAS-T (IEEE802.3ab Gigabit Ethernet), 100BASE-TX (IEEE802.3u Fast Ethernet),
10BASE-T(IEEE802.3 Ethernet) , 52/155/622 Mbps and 1.2Gbps ATM, POE,
POE+(IEEE802.3af, IEEE802.3at) ,TP-PMD, TPDDI, ISDN, VOIP, Analog & Digital Voice,
Digital & Analog Video 4/16 Mbps Token Ring.
2.5G BASE-T (IEEE802.3bz)

STANDARD
– ANSI/TIA-568-C.2 Category 5E, ANSI-TIA/EIA-568-B.2 Category E
– ISO/EC 11801:2002 Class D, ISO/IEC 11801:2017 Class D
– EN50173 Category 5E, EN50288-3-1, EN50173-1 Category 5E
-IEC61156-5
– UL444, NEC800
– NEMAWC63.1 ICEAS-90-661 Category 5E, NEMA WC 63.1, ASTM D 4566-98.
– RoHS Compliant
– ANSUTA-568.2-D Category 5E

TEMPERATURE
Installation – 40 ‘C to 75
Operating – 40 ‘C to 75 C
Storage – 40 C to 80 c
