Cat6 UTP Cable 23AWG,Copper 0.55 600MHz, CMR, Bule

PRODUCT DESCRIPTION
High-Performance Data Cable. Indoor UV Rated Jacket. Self-supporting.

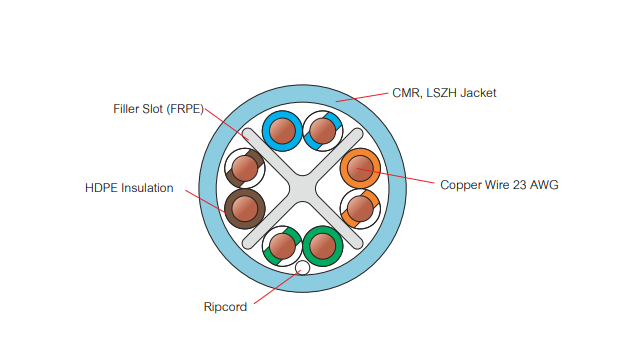

4 twisted-Pair cable, Using solid bare copper conductor 23 AWG,
insulated with CMR/LSZH Jacket

APPLICATION
1000BAS-T (IEEE802.3ab Glqabit Ethemet) 100BASE-TX (IEEE802.3 iu/ab
Fast Ethernet) ,10BASE-T(IEEE802.3Ethernet) ,52/155/622 Mbps and
1.2Gbps ATM, 10GBASE-T(IEEE 802.3an 10Gigabit Ethemet 55m),
POE,POE+(IEEE802.3af, IEEE802.3at) ,TP-PMD, TPDDI, ISDN, VOIP,
Analog & Digital Voice, Digital & Analog Video,4/16Mbps Token Ring
2.5G BASE-T, 5G BASE-T (IEEE802.3bz)

STANDARD
– ANSI/TIA-568-C.2 Category 6, ANSI-TIA/EIA-568-8.2 Category 6,
TIAVEIA-568 A/B Category 6 , ANSI/TA-568.2-D
– ISO/IEC11801:2017, ISO/EC 11801:2002 Class E
– EN50173 Category 6, EN50288-3-1, EN 50288-6-1, EN 50173-1
– IEC61156-5, NEC800 , UL444.IEC 60332-1
– NEMA MC63.1, NEMAWC63.1 ICEAS-90-661 Category 6
– ICEA S-102-700 Cateory 6
– RoHS Compliant

TEMPERATURE
Installation – 40 C to 60 *C
Operating – 40 ‘C to 60 C
Storage – 40 *C to 80 C
