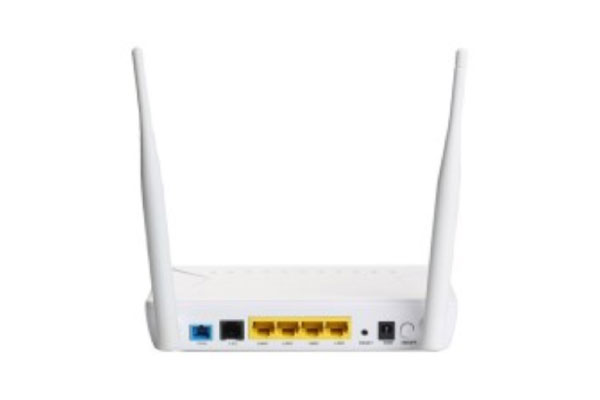

EPON ONU, 1GE+3FE+1POTS+WIFI

FEATURE
– Support EPON and GPON, and switch mode automatically.
– Support ONU auto-discovery/Link detection/remote upgrade of software
– WAN connections support Route and Bridge mode
– Route mode supports PPPoE/DHCP/ static IP
– Support WIFI Interface and multiple SSID
– Support QoS and DBA
– Support port Isolation and port vlan configuration
– Support Firewall function and IGMP snooping multicast feature
– Support LAN IP and DHCP Server configuration;
– Support Port Forwarding and Loop-Detect
– Support TR069 remote configuration and maintenance
– Support Pots interface for VolP Service
– Specialized design for system breakdown prevention to maintain stable system

OVERVIEW
FO-404VW is designed as HGU(Home Gateway Unit) in deferent FTTH solutions, The carrier-class FTTH application
provides data service access.HA404VWR is based on mature and stable, cost-effective XPON technology. It can switch
automatically with EPON and GPON when it access to the EPON OLT or GPON OLT.
FO-404VW adopts high reliability, easy management, configuration flexibility and good quality of service (QoS)
guarantees to meet the technical performance of the module of China Telecom EPON CTC3,0 and GPON Standard of
ITU-TG.984.X
