IP30 Compact size 4-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch

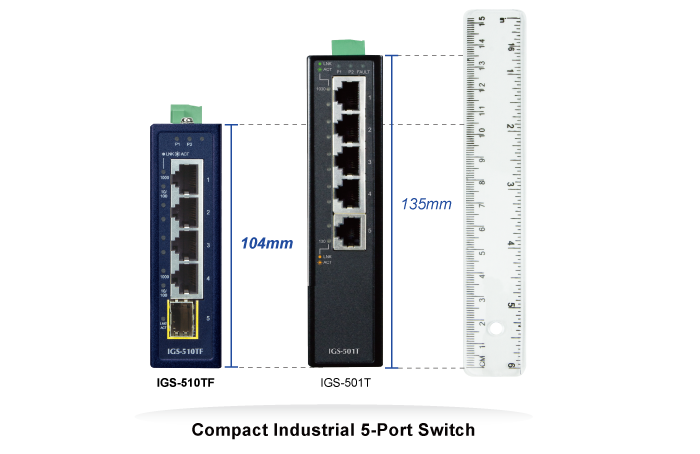

Compact Size for More Practicability and Convenience

PLANET IGS-510TF is an industrial-grade Gigabit Ethernet Switch, featuring four 10/100/1000BASE-T copper ports and one 100/1000BASE-X SFP fiber port and packed in an IP30-rated rugged but compact-size case. Being able to operate under the temperature ranging from -40 to 75 degrees C and a wide-ranging redundant power system (9~48V DC or 24V AC), the IGS-510TF provides reliable, stable and continuous long-range data transmission and can be installed in any harsh environment without taking space into consideration.

Fiber-optic Link Capability Extends the Range of Network Deployment

The maximum distance between two IP devices via Ethernet UTP cable is 100 meters. To flexibly extend the deployment range of IP devices, the IGS-510TF’s SFP slot supporting 100BASE-FX/1000BASE-X, SFP modules, and more can reach a transmission distance of up to 120km.

Thus, building a network solution of FTTH (Fiber to the Home), FTTC (Fiber to the Curb) for ISPs or FTTB (Fiber to the Building) for enterprises becomes so easy to users when long-distance deployment is employed. The IGS-510TF can handle extremely large amounts of data in a secure topology linking to a metro switch, backbone or high-capacity server.

Small but Tough

The IGS-510TF is specifically designed with durable components and strong housing to operate reliably in electrically harsh and climatically demanding environments like plant floors or curbside traffic control cabinets. With wide operating temperature range of -40 to 75 degrees C, the IGS-510TF is ideal for service providers, campuses and public areas to deploy outdoor wireless access points, outdoor IP cameras or IP phones in any places easily and efficiently.

Dual Power Input for High Availability Network System

The IGS-510TF features a strong dual power input system with wide-ranging voltages (9V~48V DC or 24V AC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the IGS-510TF via power supply 2 alternatively without any loss of operation.

Low Power Consumption for Green Networking

The IGS-510TF, adopting the advanced green networking technology, provides cable length power saving, and link-up and link-down power saving. These features make the IGS-510TF consume very low power in full load operation mode, which helps conserve energy effectively but maintains high performance efficiently.

With the Auto Power Saving and IEEE 802.3az Energy Efficient Ethernet (EEE) Protocol, the IGS-510TF can automatically detect cable link status and network traffic, and thus is able to adjust power consumption accordingly. It enables the switch to consume less power when it is less active.

Robust Protection

The IGS-510TF provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

Flexible and Easy Installation with Limited Space

The compact sized IGS-510TF is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexibly and easily in any space-limited location.
