Cat6 UTP Cable, Outdoor Single Jacket, 23AWG

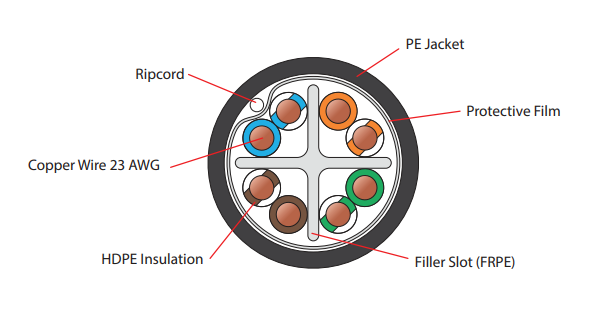

PRODUCT DESCRIPTION
High-Performance Data Cable. Outdoor UV Rated Jacket.
Self-supporting. 4 twisted-Pair cable, Using solid bare
copper conductor 23 AWG, insulated with HDPE Jacket

APPLICATION
1000BASE-T (IEEE802.3ab Gigabit Ethemnet) 100BASE-TX (IEEE802.3u
Fast Ethernet) 10BASE-T(IEEE802.3Ethernet) 52/155/622 Mbps and
1.2Gbps ATM, 10GBASE-T(IEEE 802 3an 10Gigabit Ethernet 55m),
POE,POE+(IEEE802.3af, IEEE802.3at) TP.-PMD, TPDDI, ISDN, VOIP,
Analog & Digital Voice, Digital & Analog Video,4/16Mbps Token Ring
2.5G BASE-T, 5G BASE-T (IEEE802.3bz)

STANDARD
-ANSI/TIA-568-C.2 Category 6, ANSI-TIA/EIA-568-8.2 Category 6,
ANSI-TIA/EIA-568-B.2-1, TIA/EIA-568 A/B Category 6, TIAVEIA Category 6
– ANSI/TIA-568.2-D
– ISO/IEC11801:2017, ISONEC 11801:2002 Class E
– EN50173 Category 6, EN 50173-1 , EN50288-3-1, EN 50288-6-1
– IEC61156-5, NEC800 , UL444
– NEMA MC63.1, NEMAWC63.1 ICEAS-90-661 Category 6
– ICEA S-102-700 Cateory 6
– RoHS Compliant

TEMPERATURE
Installation – 40 C to 75 C
Operating – 40 C to 75 C
Storage – 40 ‘C to 80 C
Rating Temp Voltage 75 ‘C, 300Volts
