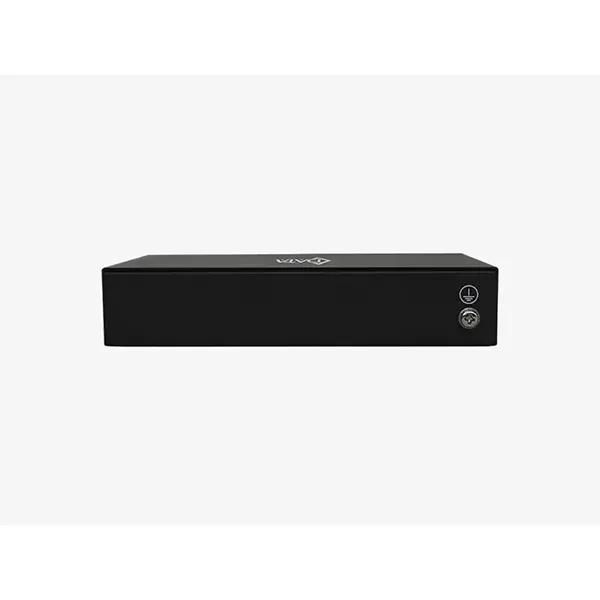

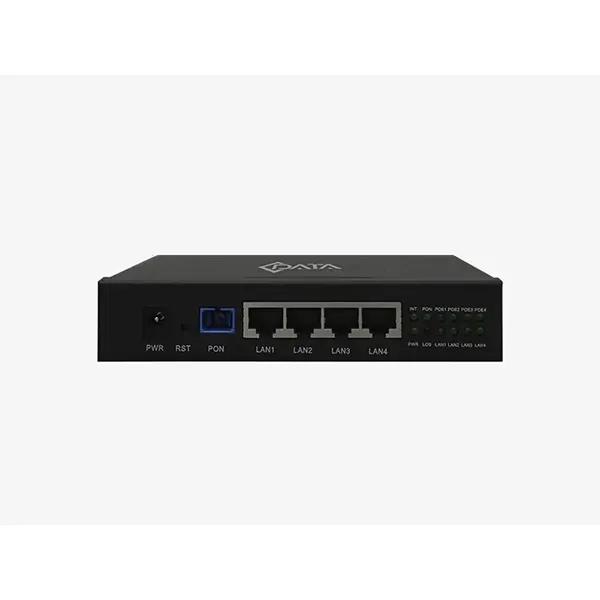

| Model | FD514GB-PFX-R410 |
| User Port (LAN) | 4x 10/100/1000Mbps adaptive Ethernet port; Full/half duplex; Auto MDI/MDI-X |
| Indicators | PWR / PON / LOS / LAN 1-4 / POE / INT |
| PON Mode | EPON: 1000BASE-PX20+ symmetric; GPON: FSAN G.984.2 standard, Class B+ |
| PON Rate | EPON: 1.25Gbps (downstream/upstream); GPON: 2.488Gbps/1.244Gbps (downstream/upstream) |
| Wavelength | Transmit: 1310nm; Receiver: 1490nm |
| Receiving sensitivity | EPON: -27dBm; GPON: -28dBm |
| Saturated power | EPON: -3dBm; GPON: -8dBm |
| Transmitting power | EPON: 0 ~ 4dBm; GPON: 0.5 ~ 5dBm |
| Power | Support POE feed (PSE); PSE output voltage: 48V DC; The maximum output power of the whole machine: 56W; The maximum output power of a single port: 30W; Max machine power consumption: <60W |
| Operating temperature | -30 to 65ºC |
| Operating humidity | 10% ~ 90% (Non-condensing) |
