6W CEILING SPEAKER 100V 200Hz-20KHz

฿1,050.00

Lead time :

Superior sound, crystal clarity
ABS Material
Wide Frequency
Easy Installation
HD Audio Qualtiy

Warranty : 3 Year

Warehouse : BKK

SKU: NAC-132 Category: Tags: ,

1 in stock

Loading...

Download Datasheet NAC-132

Product Specifications
Model No. NAC-132 NAC-133 NAC-134
Input Power 3W/6W(100V) 3W/6W(100V) 5W/10W(100V)
Rated Impedance 3.3kΩ(3W)/1.7kΩ(6W) 3.3kΩ(3W)/1.7kΩ(6W) 2kΩ(5W)/1kΩ(10W)
SPL 88±3dB(1M/1W) 90±3dB(1M/1W) 94±3dB(1M/1W)
Frequency Response 85Hz-15KHz 70Hz-20KHz 65Hz-17KHz
Speaker Unit 5″*1 6″*1 8″*1

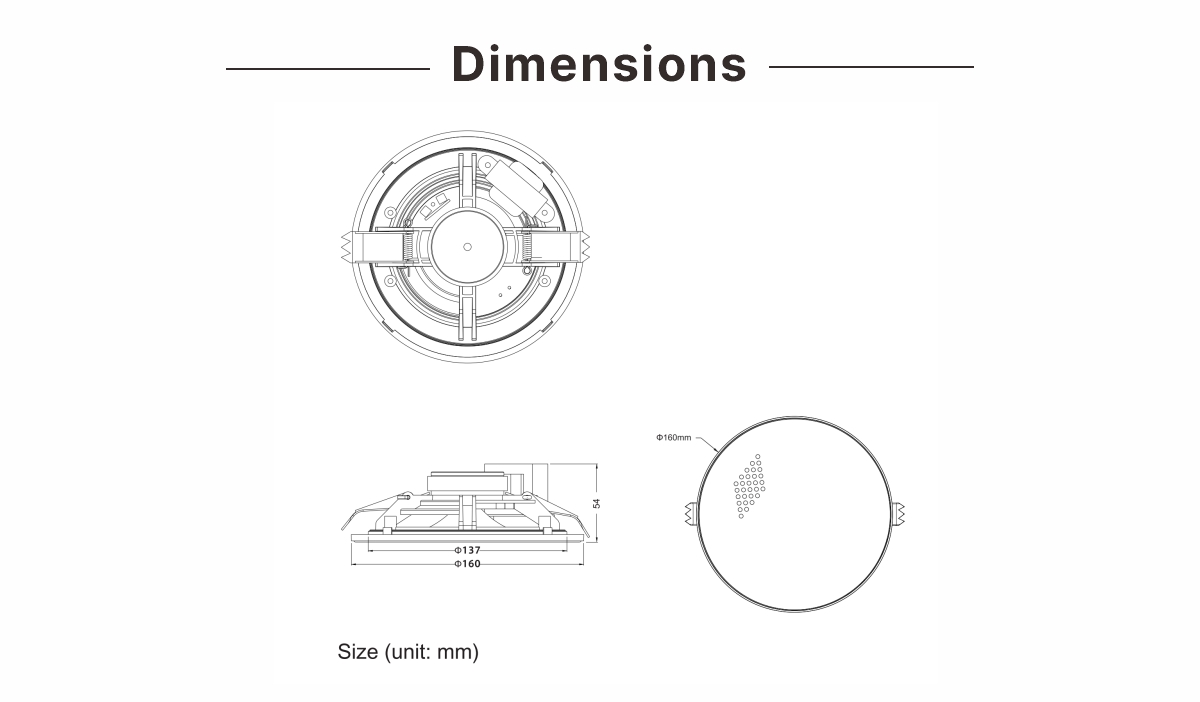

Mounting Hole Size Φ140mm Φ170mm Φ210mm
Speaker Mounting Method Ceiling Recessed
Connection Type Plastic Terminal
Material Front shell: ABS
Size Φ160mm x 54mm Φ186mm x 71mm Φ232mm x 90mm
Weight 0.5Kg 0.76Kg 0.94Kg
Operating Temperature -25℃ to 55℃
Storage Temperature -40℃ to 70℃
Relative Humidity ≤95%
