Product Specifications |
Model No. |
NAS-8523C |
NAS-8523D |
Power Supply |
DC 24V/1A or PoE (IEEE802.3af) |
Power Consumption |
≤30W |
Network Protocol |
SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP |
Audio Sampling Rate |
8kHz-22.05kHz, 16bit |
Transmission Bit Rate |
8kbps-320kbps |
S/N (Signal-to-Noise) Ratio |
≥82dB |
Frequency Response |
50Hz-20kHz |

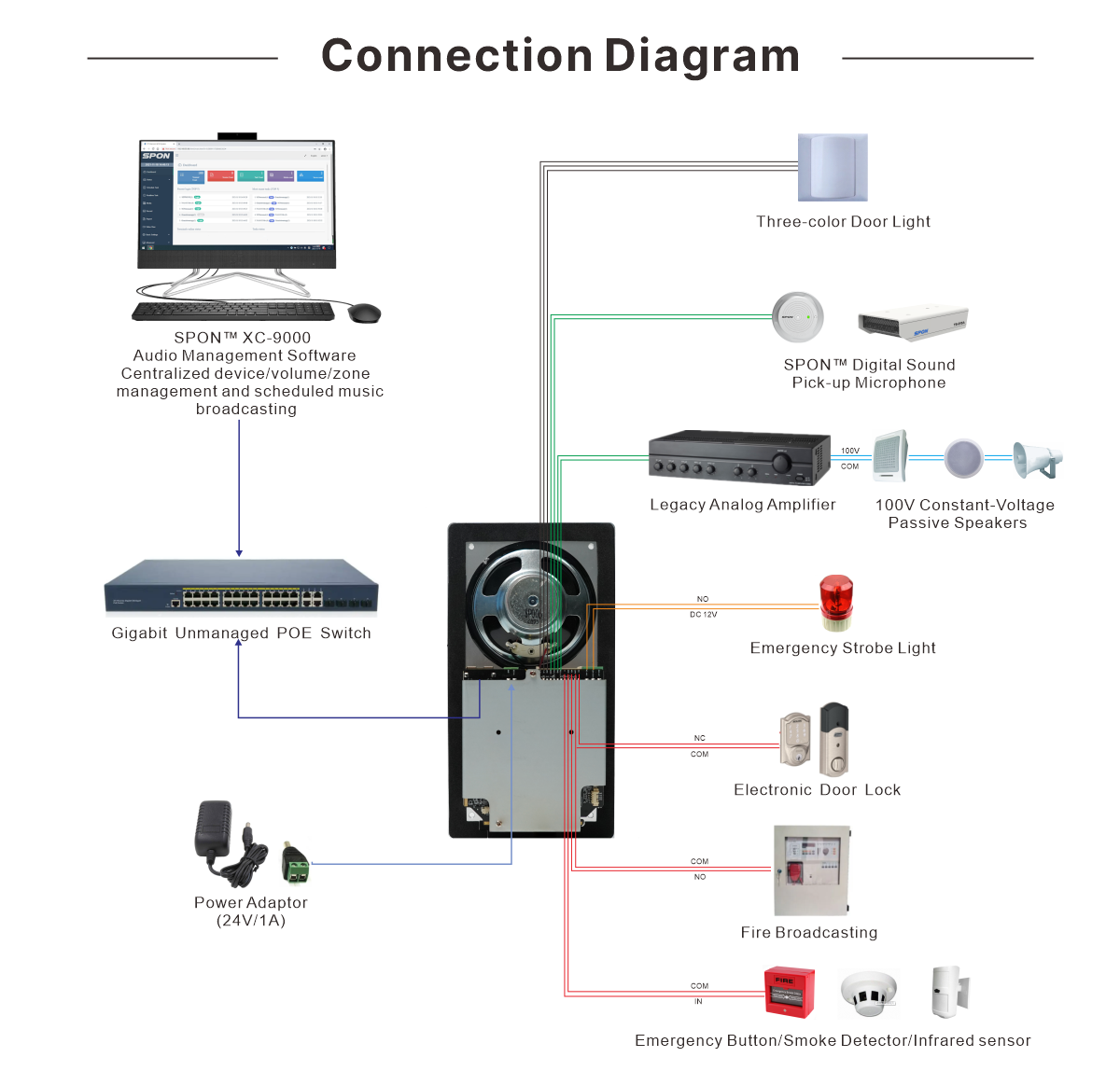

Interface |
1×RJ45 Ethernet Port, 1×Relay Input, 1×Relay Output, 1×Line Input, 1×Line Output, 1×Controlled Power Output, 1×Power Input |
Dimensions |
191×101×46mm |
Weight |
1.0kg |
Standard Accessories |
1×2-Pin Terminal Block Connector, 1×3-Pin Terminal Block Connector, 1×Installation Manual |
Optional Accessories |
DC 24V/1A Power Adapter (US/EU/UK/AU) |
