| Product Specifications |
| Model No. |
XC-9135AV |
| Power Supply |
DC 12V/1.5A or PoE (IEEE802.3af) |
| Power Consumption |
≤6W |
| Network Protocol |
SIP 2.0 (RFC 3261), HTTP, TCP/IP, UDP, ARP, ICMP, IGMP |
| Audio Sampling Rate |
8kHz-44.1kHz, 16bit |
| Transmission Bit Rate (Audio) |
8kbps-320kbps |
| Video transmission Bit Rate |
512Kbps-4Mbps |
| Video Coding |
GVA |
| Total Harmonic Distortion (THD) |
＜1% |
| Signal-to-Noise (S/N) Ratio |
≥81dB |
| Interface |

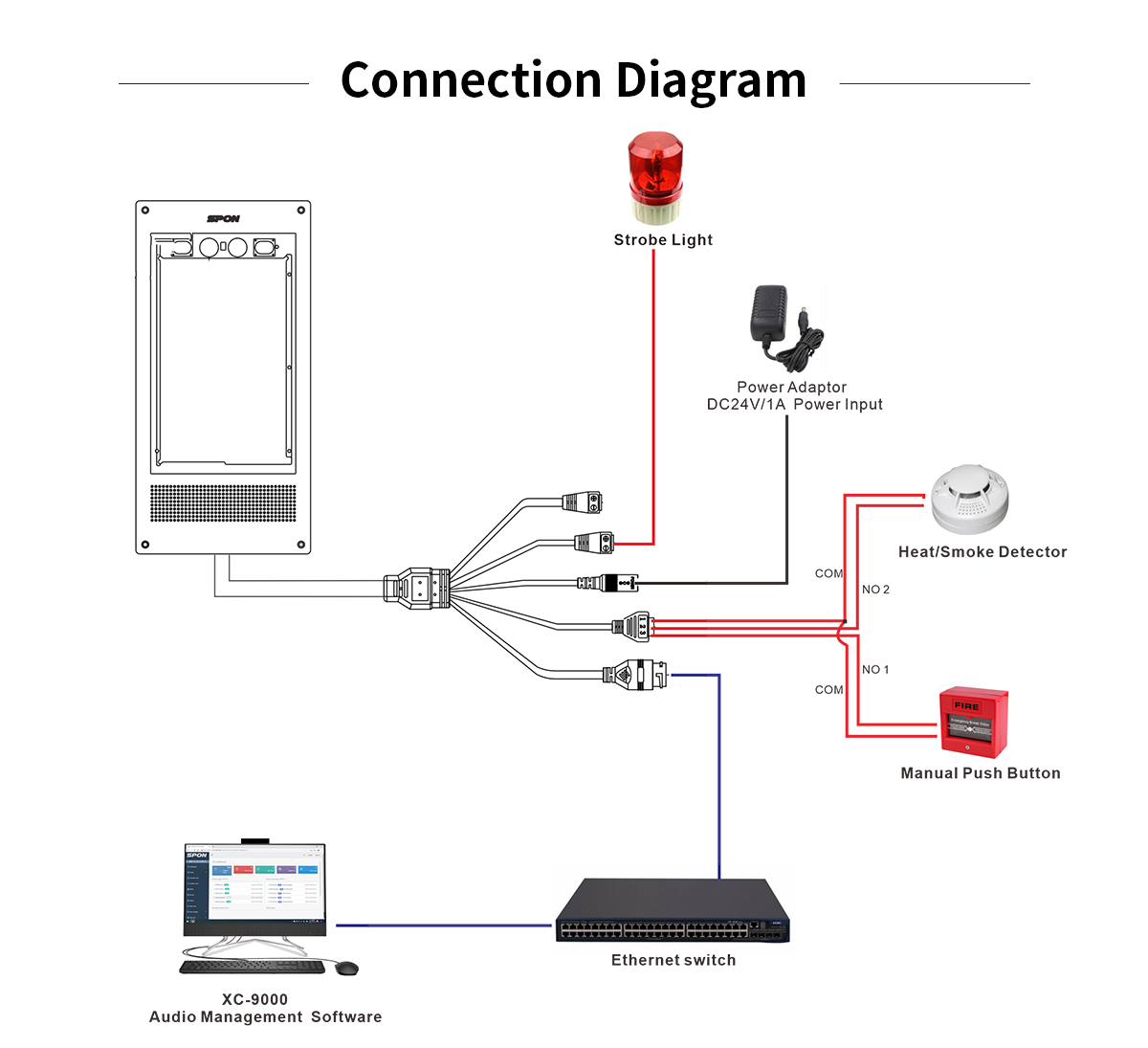

1×RJ45 Ethernet Port, 2×Relay Input, 2×Relay Output, 1×Power Input |
| IP Rating |
IP65 |
| Dimensions |

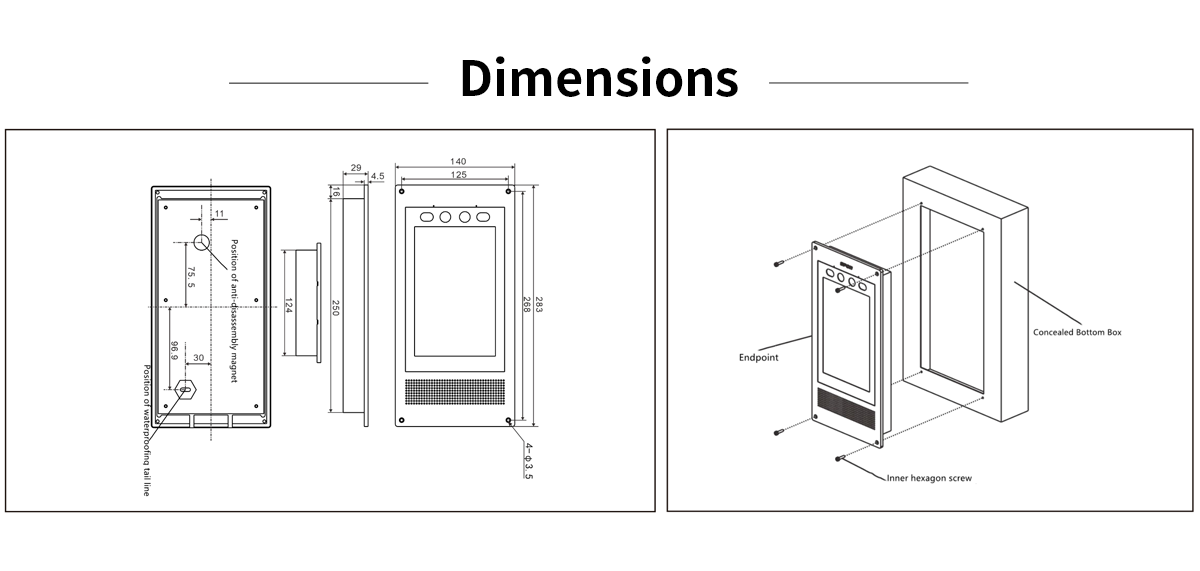

140×283×29mm |
| Weight |
1.3kg |
| Standard Accessories |
1×Waterproof Connector, 2×2-Pin Terminal Block Connector, 1×3-Pin Terminal Block Connector, 1×Installation Manual |
| Optional Accessories |
DC 12V/1.5A Power Adapter (US/EU/UK/AU) |
