| Product Specifications |
| Model No. |
NAS-8523CV |
NAS-8523DV |
| Power Supply |
DC 24V/1A or PoE (IEEE802.3af) |
| Power Consumption |
≤30W |
| Network Protocol |
SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP |
| Audio Sampling Rate |
8kHz-22.05kHz, 16bit |
| Video Transmission Bit Rate |
512Kbps-4Mbps |
| Video Coding |
GVA/720/1080P |
| S/N (Signal-to-Noise) Ratio |
≥82dB |
| Frequency Response |
50Hz-20kHz |
| Interface |
1×RJ45 Ethernet Port, 1×Relay Input, 1×Relay Output, 1×Line Input, 1×Line Output, 1×Controlled Power Output, 1×Power Input |

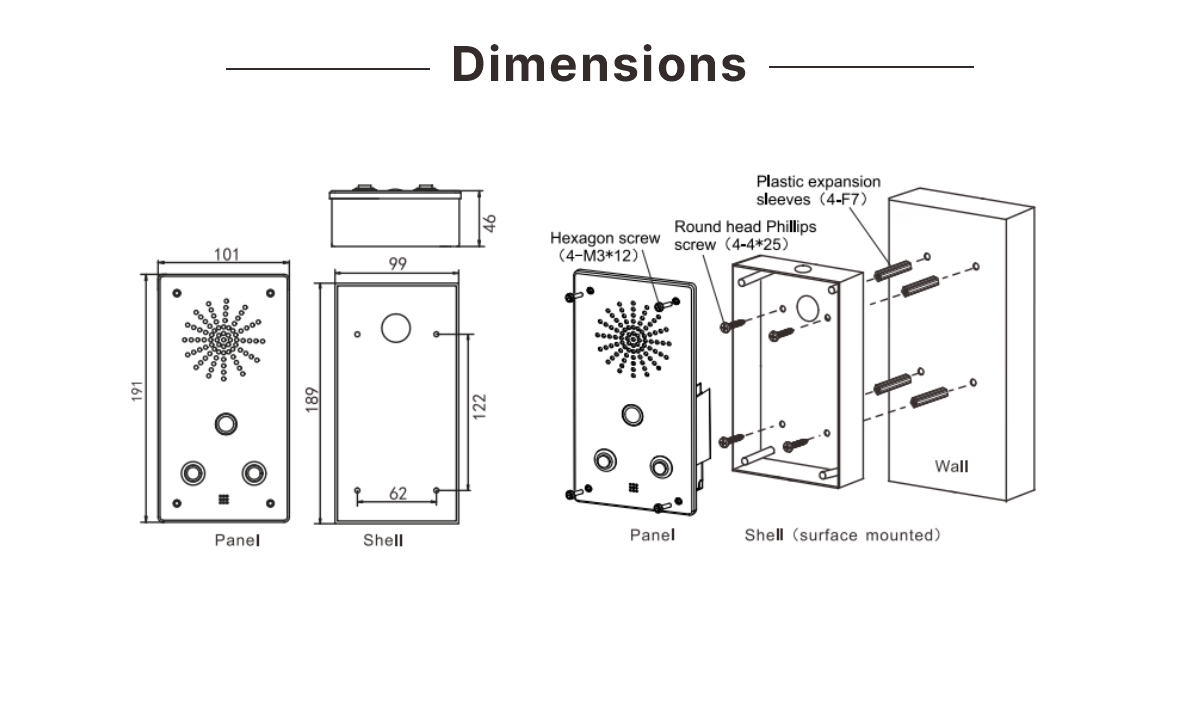

| Dimensions & Weight |
191×101×46mm & 1.0kg |
| Standard Accessories |
1×2-Pin Terminal Block Connector, 1×3-Pin Terminal Block Connector, 1×Installation Manual |
| Optional Accessories |
DC 24V/1A Power Adapter (US/EU/UK/AU) |
