| Product Specifications |
| Power Supply |
DC 24V/1A or PoE (IEEE802.3af) |
| Power Consumption |
≤6W |
| Network Protocol |
SIP 2.0 (RFC 3261), HTTP, TCP/IP, UDP, ARP, ICMP, IGMP |
| Audio Sampling Rate |
8kHz-44.1kHz, 16bit |
| Transmission Bit Rate |
8kbps-320kbps |
| Video transmission Bit Rate |
512Kbps-1Mbps |
| Video Coding |
GVA |
| Signal-to-Noise (S/N) Ratio |
≥84dB |
| Total Harmonic Distortion (THD) |
<1% |
| Interface |

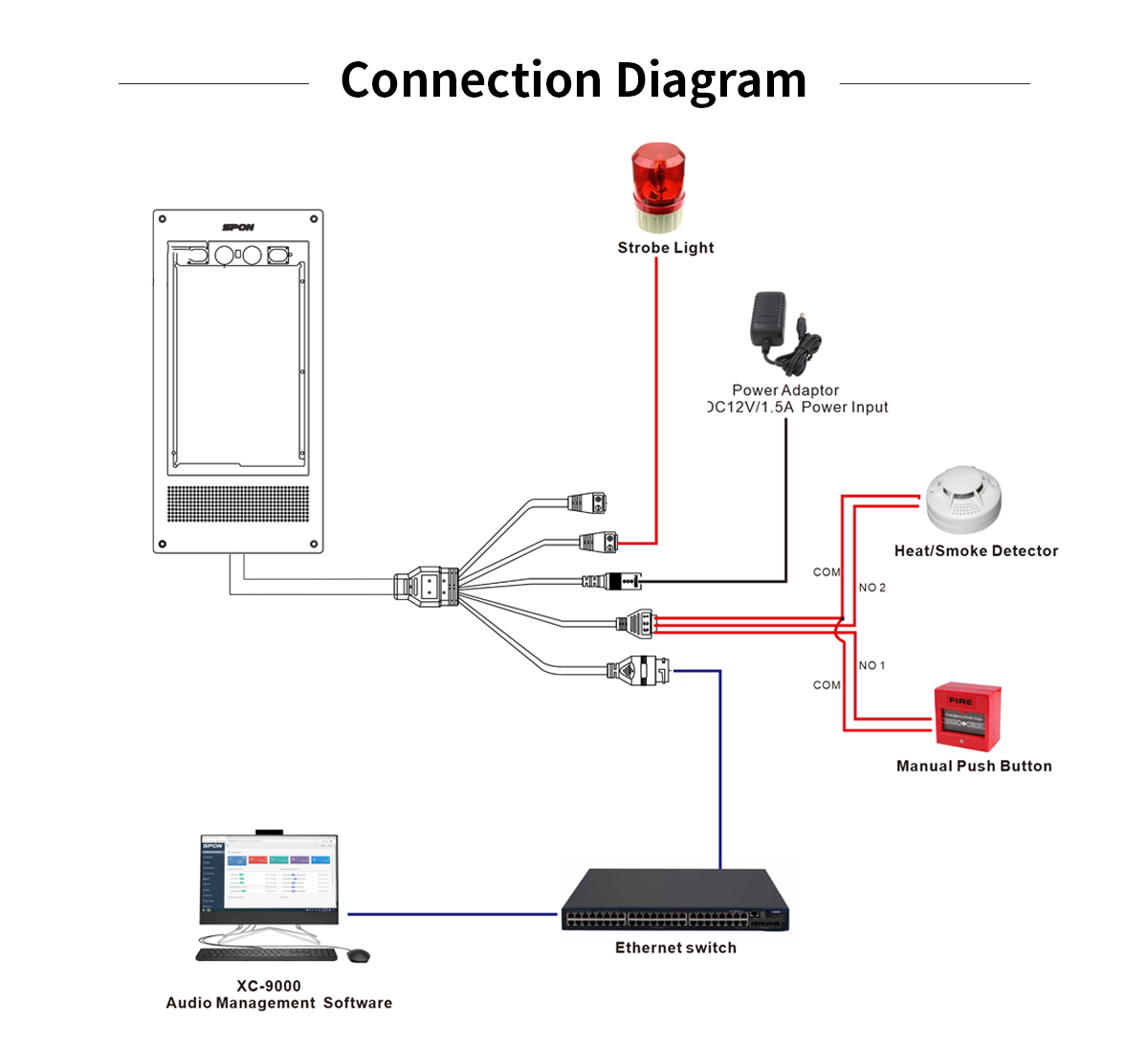

1×RJ45 Ethernet Port, 2×Relay Input, 2×Relay Output, 1×Power Input |

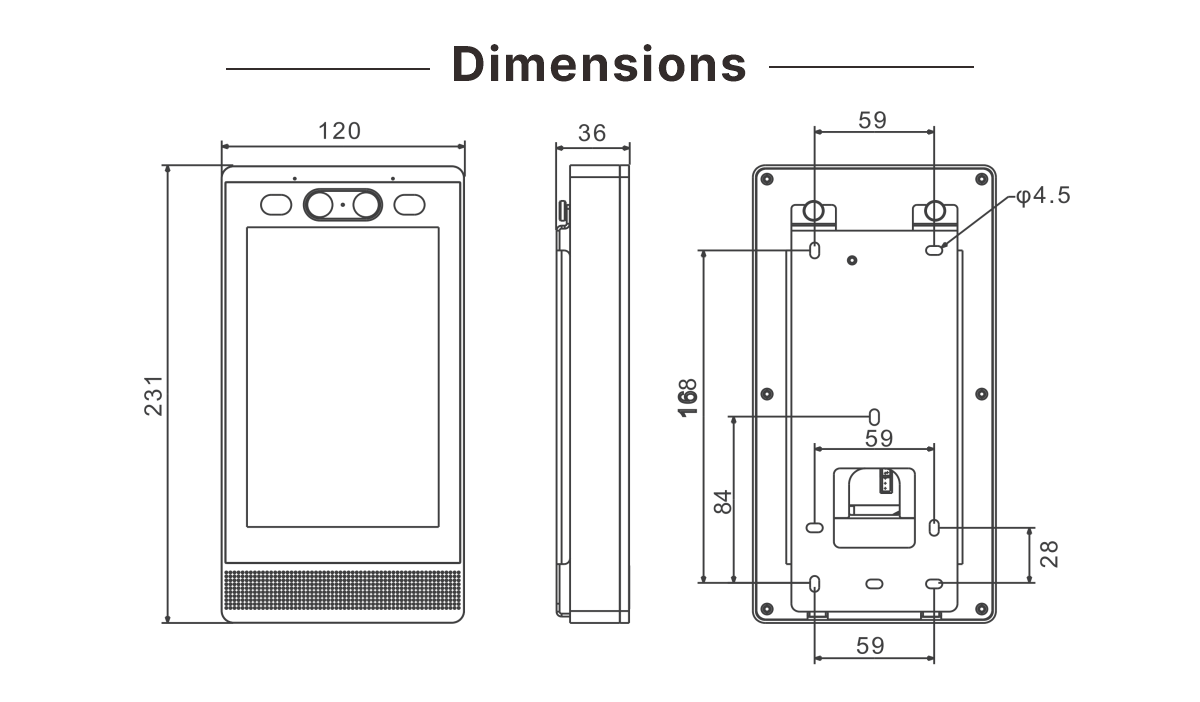

| Dimensions |
120×231×36mm |
| Weight |
1.0kg |
| Standard Accessories |
1×Waterproof Connector, 1×Mounting Plate, 2×wire Contact Cable, Connector, 1×Warranty Card, 1×Installation Manual |
| Optional Accessories |
DC 24V/1A Power Adapter (US/EU/UK/AU) |
