DH02U5

Name: DH02U5
Brand: Shuttle
SKU: NWK-573
Price: 139860 THB
Availability: OutOfStock

SKU: NWK-573

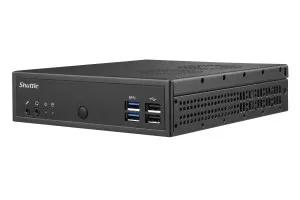

DH02U5 Slim PC (Core i5)

SI Price (excl. VAT)

฿139,860

per pcs · MOQ: 1

Stock

Actual: 0 units

Planning: 0 units

Shipping Conditions

Warranty

Product Highlights

Chassis	Slim PC with black chassis made of metal. Dimensions: 190 x 165 x 43 mm (LWH) = 1.35-litre. Weight: 1.03 kg net and 2.2 kg gross. Two holes for Kensington Locks and numerous threaded holes (M3) at both sides of the chassis
Operation System	This barebone system comes without operating system. It is compatible with Windows 10 (64-bit) and Linux (64-bit).
Processor	Model: Intel Celeron 3865U (ULV). System-on-chip architecture (SoC): no chipset required. BGA1356 package - directly soldered onto the mainboard. Code name: Kaby Lake-U (7th Generation Intel Core). Cores / Threads: 2 / 2. Clock rate: 1.8 GHz. L1/L2/L3 Cache: 128 kB / 512 kB / 2048 kB. TDP wattage: 15 W maximum. Manufacturing process: 14 nm. Maximum Junction Temperature: 100°C. Supports 64-bit, VT-x (EPT), VT-d, Enhanced SpeedStep, NX bit, AES-NI, SSE 4.1/4.2
NVIDIA Graphics Card	Graphics Processing Unit: NVIDIA GeForce GTX 1050 (Pascal architecture). 640x CUDA v6.1 Cores at 1354 MHz Graphics clock. Supports DirectX 12, OpenGL 4.5, OpenCL 1.2, HDCP 2.2. Video outputs: 4x HDMI 2.0b. Supports up to 4 independent Ultra HD displays at the same time. Graphics resolution: max. 4096 x 2160 @ 60 Hz (2160p60) each port. Video memory: 4 GB GDDR5 VRAM 128-bit, 3500 MHz, max. 112 GB/s. Slot / Bus Type: MXM 3.0 Type A with PCIe X4 interface
Mainboard / BIOS	Shuttle Mainboard FS02U. All capacitors are high quality solid capacitors. AMI BIOS in 8 MByte Flash EEPROM with SPI interface. Supports resume after power failure. Supports Wake on LAN (WOL). Supports Power on by RTC Alarm. Supports boot from M.2 SSD cards and USB devices. Supports hardware monitoring and watch dog function. Supports Unified Extensible Firmware Interface (UEFI). Supports Firmware-TPM (fTPM) Version 2.0
Memory Support	2x SO-DIMM slot with 260 pins. Supports DDR4-2133 (PC4-17000) SDRAM at 1.2 V. Supports Dual Channel mode. Supports a maximum of 16 GB per DIMM, maximum total size: 32 GB. Supports two unbuffered DIMM modules (no ECC or registered)
2.5" Bay	2.5" Drive Bay with SATA connector. Supports one Serial ATA hard disk or one SATA SSD drive in 6.35 cm / 2.5" format. Device height: max. 12.5 mm. Supports Serial-ATA III, 6 Gb/s (600 MB/s) bandwidth. Supports Unified Extensible Firmware Interface (UEFI). Note: a serial ATA cable is pre-installed
M.2-2280 Slot	The M.2 2280 M slot provides the following interfaces: PCI-Express v2.0 X4 supports NVMe; SATA v3.0 (6 Gbps). It supports M.2 cards with a width of 22 mm and a length of 42, 60 or 80 mm (type 2242, 2260, 2280). Supports M.2 SATA SSDs (with B+M key) and M.2 PCIe SSDs (with M key)
M.2-2230 Slot	The M.2 2230 AE slot provides the following interfaces: PCI-Express v2.0 X1; USB 2.0. It supports M.2 cards with a width of 22 mm and a length of 30 mm. This slot is intended for Wireless LAN (Wifi), Bluetooth, GSM/UMTS cards and others. A SATA interface for SSD cards is not available here
Audio	Audio Realtek ALC 662 High-Definition Audio. Two analog audio connectors (3.5 mm) at the back panel: 1) 2 channel line out (headphones), 2) microphone input. Digital multi-channel audio output: via HDMI
Gigabit LAN	Intel i211 Ethernet Controller with MAC, PHY and PCIe interface. Supports 10 / 100 / 1,000 MBit/s operation. Supports WAKE ON LAN (WOL). Supports network boot by Preboot eXecution Environment (PXE)
Front Panel Connectors and LEDs	2x USB 3.0. 2x USB 2.0. Power button. Power LED (blue). HDD LED (yellow)
Back Panel Connectors	4x HDMI 2.0b (with screw holes for connectors with locking screws). 2x USB 3.0. 1x Intel Gigabit LAN (RJ45). 1x D-Sub connector for serial COM port (RS232). 1x Microphone input. 1x Audio Line-out (headphones). 1x DC-input connector for external power adapter. 4-pin connector SW2 (2.54 mm pitch) for power button, Clear CMOS and 5 V DC
Always-On Jumper	By removing Jumper JP1 (please refer to the quick user guide) the system will start unconditionally once power is applied
Other Onboard Connectors	1x serial RS232 interface / COM port (2x 5-pin occupied). 2x fan connectors (4-pin) occupied by CPU and GPU cooling fans. 1x connector for CMOS battery (2-pin, occupied). 1x USB 2.0 header (Pitch distance: 1.25 mm, 4-pin, available). 1x Audio Input/Output (2x7-pins, available). 1x analog VGA graphics output CN2 (2x 1-pin, 1 mm pitch)
Power Adapter	External 120 W power adapter (fanless). Input: 100–240 V AC, 50/60 Hz, max. 1.8 A. Output: 19 V DC, max. 6.32 A, max. 120 W output wattage. AC Connector with protective-earth contacts, cable length: 1.7 m. Level VI efficiency class
DC Input Connector	DC Input Connector: 5.5 / 2.5 mm (outer/inner diameter). The DC-input of the computer supports an external power source with 19V±5%
Scope of Delivery	Multi-language user guide. Driver DVD for Windows 10 (64-bit). VESA mount for 75/100 mm standard (two metal brackets). Four screws M3 x 7 mm. Four screws M4 x 10 mm. Four screws M3 x 4 mm. Two screws M3 x 5 mm. External 120 W power adapter with DC cable. 3-pin AC power cord with protective-earth contacts, cable length: 1.7 m
Optional Accessories	WLN-M: Wireless LAN kit supports IEEE 802.11ac and Bluetooth 4.0 including M.2-2230 WLAN card and two external antennas with cables. PS02: Stand for vertical operation. CXP01: adapter cable for external power button. PRM01: 2U rack mount front plate for two Shuttle XPC slim PCs. DIR01: DIN-Rail Mounting Kit
Environmental Specifications	Operating temperature range: 0–50°C. Relative humidity, non-condensing: 10–90%
Conformity Certifications	EMI: CE, FCC, BSMI, VCCI, RCM. Safety: CB, BSMI, ETL. Other: RoHS, Energy Star, ErP. This device is classed as a technical information equipment (ITE) in class B and is intended for use in living room and office. CE-mark approves conformity with EU directives: 2004/108/EC (EMC), 2006/95/EC (Electrical Equipment), 2009/125/EC (ErP)
