DH610S
Shuttle○ Pre-order

DH610S

SKU: NWK-567

DH610S 1.3-liter Slim PC

SI Price (excl. VAT)
฿27,480
per pcs · MOQ: 1
Stock
Actual: 0 units
Planning: 0 units
Shipping Conditions
Contact us for shipping details.
Warranty
Contact us for warranty details.
1
Product Highlights
    ChassisSlim black metal chassis
    Dimensions190 × 165 × 43 mm (L × W × H), 1.35-litre
    Weight1.3 kg net
    Operating SystemWindows 10 / Windows 11 64-bit / Linux 64-bit
    Processor SocketLGA1700
    Processor Support12th / 13th / 14th Gen Intel® Core™ processors
    Maximum Processor TDP65 W
    ChipsetIntel® H610

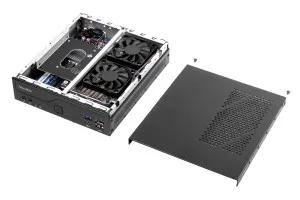

    CoolingHeat-pipe cooling with 2 × 60 mm fans
    Memory2 × DDR4 SO-DIMM
    Memory SpeedUp to DDR4-3200
    Maximum Memory64 GB
    Integrated GraphicsIntel® UHD Graphics, depending on installed processor
    Display SupportUp to 2 independent displays, 3 with optional VGA
    Display Outputs1 × HDMI 2.0b / 1 × DisplayPort 1.4
    Maximum Digital Resolution3840 × 2160 @ 60 Hz
    2.5" Storage1 × 2.5" SATA III HDD/SSD bay
    M.2 Storage1 × M.2-2280 SSD slot
    M.2 Storage InterfacePCIe Gen3 ×4 NVMe / SATA III
    LAN1 × Gigabit Ethernet RJ45
    Ethernet ControllerIntel i219V/LM
    WLAN Expansion1 × M.2-2230E slot

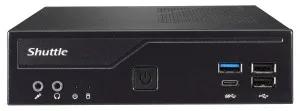

    Front USB1 × USB 3.2 Gen 1 Type-A / 1 × USB 3.2 Gen 1 Type-C / 2 × USB 2.0
    Rear USB2 × USB 3.2 Gen 1 Type-A / 2 × USB 2.0
    AudioRealtek® ALC897 / ALC662 / ALC888S HD Audio
    TPMFirmware TPM 2.0
    Remote Power-OnSupported
    VESA MountOptional accessory
    Power AdapterExternal 120 W fanless adapter
    DC Input19 V DC
    Operating Temperature0–50°C
    Relative Humidity10–90% (Non-condensing)
