Home›All Products›Networking›WL-G530-NQ
W-LINK○ Pre-order

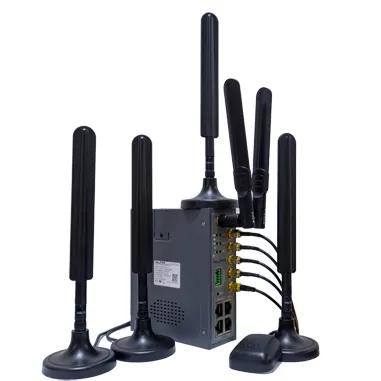

WL-G530-NQ
SKU: NWK-412
4 Gigabit LAN, 2 SIM, 4 I/O, 1 RS232, 1 RS485, dual-band WiFi
SI Price (excl. VAT)
฿35,420
per pcs · MOQ: 1
Stock
Actual: 0 units
Planning: 0 units
Shipping Conditions
Contact us for shipping details.
Warranty
Contact us for warranty details.
1
Product Highlights
| รายการ | รายละเอียด |
| Hardware | - |
| Cellular | • 5G: n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/71/75/76/77/78/79• FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71• TDD-LTE: B34/B38/B39/B40/B41/B42/B48• WCDMA: B1/B2/B3/B4/B5/B6/B8/B19 |
| Hardware System | • MIPS Dual-core 880MHz• 256Mb Flash, 2Gb DDR3 RAM• 16–256GB Storage Optional• Hardware Watchdog |
| Interface | • 4x Gigabit Ethernet (3x LAN, 1x LAN/1x WAN Configurable)• 8 Pins Terminal block connector• 1x RS232, 1x RS485, 1x DC (2 Pins plugs)• 4x I/O• 2x SIM Slot• 5x SMA-K (Female) 5G Antenna Interface (GPS antenna interface Optional)• 2x SMA-RP Wi-Fi Interface |
| GPS (Optional) | • GPS Sensitivity: -160dBm• GPS Accuracy: 2.5m CEP• Update Rate: 1Hz@5Hz• Time to First Fix: Cold Status 27s, Hot status 1s• Protocol: NMEA-0183 2.3V |
| LED Indicator | • Signal• Error• PWR• WLAN |
| Wi-Fi | • IEEE 802.11 n/ac |
| Consumption | • Voltage: DC +7.5–32V (standard 12V/2A power adapter)• SIM/R-UIM Card: 3V• Idle: 600mA@+12VDC• Online: 850mA@+12VDC |
| Other | • Metal with grounding Screw• Dimension: 132mm x 112mm x 44mm (not including antenna)• Weight: 400g (not including accessories)• Operation temperature: -30~+75°C• Storage temperature: -40~+85°C• Relative humidity: 0~95% (non-condensing)• Warranty: Two Years |
| Software | - |
| Operating System | • WLINK OS based on Linux |
| Firewall | • IP Filter• Mac Filter• Domain name Filter |
| Network Protocol | • IPv4, IPv6 (Optional) PPPoE• UDP/TCP/ICMP/NTP/DHCP• HTTP/HTTPS• UPNP• SNMP• TR069 |
| Network Monitoring | • ICMP Check• Traffic Check• Traceroute• Data Capture• Bandwidth Graph• Data Traffic Graph |
| VPN | • Wireguard/Zerotier• DMVPN/GRE Tunnel• OpenVPN Client/Server• PPTP/L2TP Client/Server• L2TP V3• IPsec Client/Server |
| Network Features | • 5G/WAN Failover• VLAN• Bandwidth Management• NAT/DMZ• IP Passthrough/Port Redirection• Static/Dynamic routing |
| Router Management | • Local/Remote GUI• Telnet/SSH• WLINK M2M Platform |
| WLAN | • 2.4G• 5G• 2.4G & 5G Mixed |
| Customizable Features | - |
| PoE | • Customizable (Not default)• Standard PoE 802.3af/at• 2x PoE 1000M• 60W |
| OpenWRT | • Customizable (Not default)• Architecture: Media Tek• OpenWrt 21.02 |
