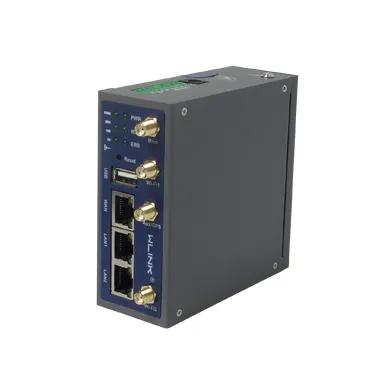

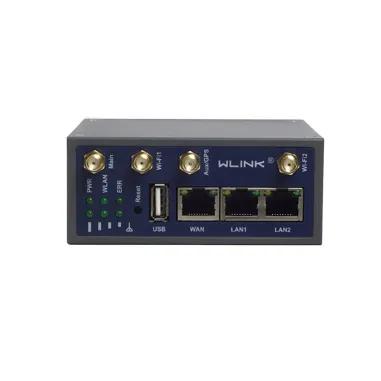

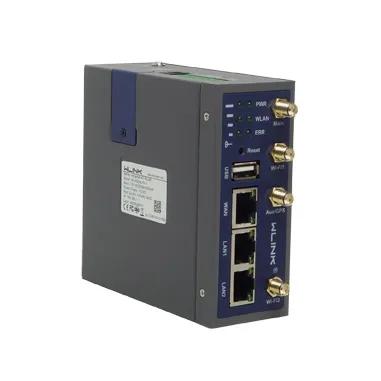

WL-R230-LA

Name: WL-R230-LA
Brand: W-LINK
SKU: NWK-419
Price: 12360 THB
Availability: OutOfStock

SKU: NWK-419

3x 100M RJ45, 2x I/O, 1x RS-232, 1x RS-485, 2x SIM Slot, Wifi 2.4GHz

SI Price (excl. VAT)

฿12,360

per pcs · MOQ: 1

Stock

Actual: 0 units

Planning: 0 units

Shipping Conditions

Warranty

Product Highlights

รายการ	รายละเอียด
Physical	-
Network	• LTE-A/LTE/LTE CAT1 • HSPA/WCDMA/UMTS • EDGE/GPRS
Hardware System	• MIPS 580MHz CPU • 256Mb Flash • 1024Mb DDR2 RAM • Hardware Watchdog • 16–256GB Storage Optional • eSIM Optional
Interface	• 3x 10/100M Ethernet Port (2x LAN, 1x WAN Configurable) • 1x RS232/TTL Optional, 1x RS485 • 1x USB • 2x IO • 2x SIM Slots • 1x DC Power Socket (DC5.5*2.1mm) • 1x DO (2 Pins plugs) • 2x SMA-K (Female) 4G Antenna • 2x SMA-RP Wi-Fi Antenna • 1x Reset
GPS (Optional)	• GPS Sensitivity: -160dBm • GPS Accuracy: 2.5m CEP • Update Rate: 1Hz@5Hz • Time to First Fix: Cold Status 27s, Hot status 1s • Protocol: NMEA-0183 2.3V
LED Indicators	• PWR • Signal • WLAN • ERR • LAN (LAN1, LAN2, WAN)
Wi-Fi (Optional)	• IEEE 802.11 b/g/n 300Mbps (2T2R) • Output Power: 11n HT40 MCS7, 11g OFDM, 11b CCK • Sensitivity: 300Mbps: -65dBm, 54Mbps: -75dBm, 11Mbps: -85dBm
Consumption	• Voltage: DC +9~30V (standard 12V/1.5A power adapter) • SIM/R-UIM Card: 3V • Idle: 160mA@+12VDC • Online: 285mA@+12VDC
Other	• Galvanized metal with grounding screw • Dimension: 120mm x 122mm x 42mm (not including antenna) • Weight: 350g (not including accessories) • Operation temperature: -30~+75°C • Store temperature: -40~+85°C • Relative humidity: 0~95% (non-condensing) • Guarantee: two years
Compliance	• FCC • CE • RoHS • CCC
Package Content	• 1x WL-R223 Router • 2x Wi-Fi antenna • 2x 4G Magnetic antenna • 1x Ethernet Cable • 1x Power Supply Adapter • 1x Din-rail Kit
Software	-
Operating System	• WLINK OS based Linux
Firewall	• SNAT/DNAT • Port Forwarding • IP Filter • Mac Filter • Key Word Filter • Domain Name Filter
Network Protocol	• IPv4/IPv6 • PPPoE • UDP • TCP • ICMP • NTP • DHCP • Modbus • HTTP/HTTPS • UPnP • SNMPv3 • TR069 • DDNS • Telnet/SSH • MQTT
Network Monitoring	• Ethernet Ports Status • ICMP Check • Traceroute • Data Capture • Bandwidth Graph • Data Traffic Graph • System Debugging Log
VPN	• GRE Tunnel • Zerotier VPN • WireGuard VPN Client and Server supported • OpenVPN: TLS1.3, encryption supported • PPTP/L2TP: Client mode, L2TP-V3 supported • IPsec GRE over IPsec, L2TP over IPsec • Two tunnels Failover • AES128, AES192, AES256 encryption modes supported • DMVPN: mGRE, NHRP, IPsec
Network Features	• Dual-SIM Failover • WAN/4G Failover • Serial Port Client/Server Applications • AT command over IP • VRRP • VLAN • IP Passthrough • Bandwidth Management • Static Routing/Policy Routing • RIPv2/OSPF/BGP Dynamic Routing
Router Management	• Local/Remote GUI • Telnet/SSH • SNMP (V1/V2/V3) • USB Troubleshooting, configuration and upgrade firmware • WLINK M2M Management Platform
WLAN Mode	• IEEE 802.11 b/g/n/ac Wireless Client and Ethernet Bridge modes • Wi-Fi client connections • Wi-Fi Hotspot • Wireless Client • Multi-SSID • WEP Personal • WPA Personal • WPA2 Personal • WPA/WPA2 Enterprise • AES • TKIP • Auto Cipher modes

WL-R230-LA
