Home›All Products›Networking›WL-G930-NQ
W-LINK○ Pre-order

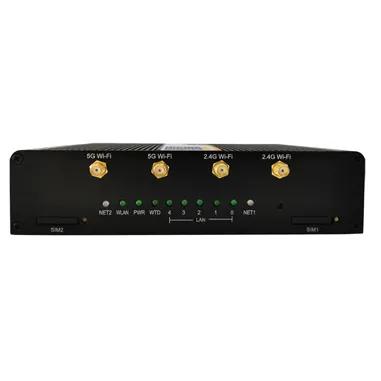

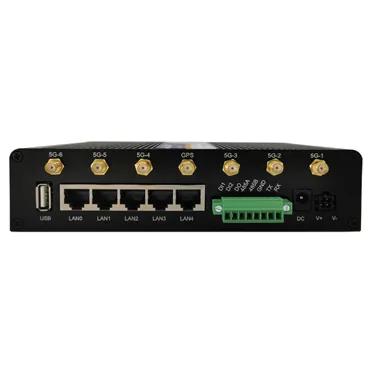

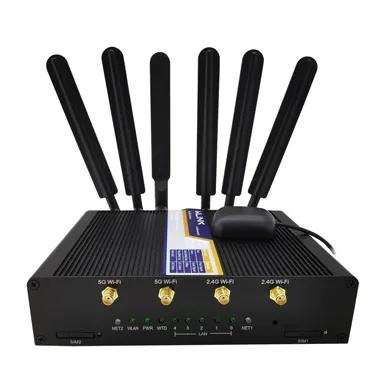

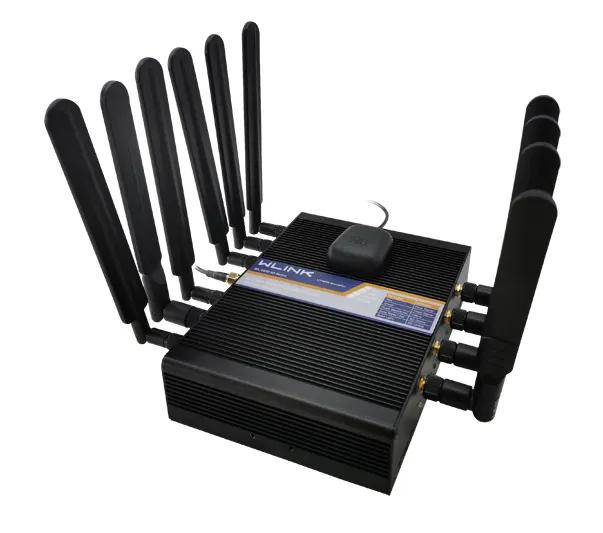

WL-G930-NQ
SKU: NWK-423
5x 1000M RJ45, 3x I/O, 1x RS-232, 1x RS-485, 2x SIM Slot, Wifi 2.4GHz + 5GHz
SI Price (excl. VAT)
฿35,420
per pcs · MOQ: 1
Stock
Actual: 0 units
Planning: 0 units
Shipping Conditions
Contact us for shipping details.
Warranty
Contact us for warranty details.
1
Product Highlights
| รายการ | รายละเอียด |
| Hardware | - |
| Cellular | • 5G: n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/71/75/76/77/78/79 • LTE: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71/34/38/39/40/41/42/48/46 • UMTS: B1/2/4/5/6/8/19 |
| Hardware System | • MIPS Dual-core 880MHz • 256Mb Flash, 2GB DDR3 RAM • Hardware Watchdog • 8-256GB Storage Optional |
| Interface | • 5x Gigabit Ethernet (4x LAN, 1x LAN/1x WAN Configurable) • 2x SIM Slot • 8Pins Terminal block connector • 3x I/O • 1x RS232 • 1x RS485 • 1x DC(5.5mm) • 1x DC(4Pins plugs) • 1x USB • 6x SMA-K(Female) 5G Antenna Interface • 1x GPS Antenna Interface • 4x SMA-RP Wi-Fi Interface |
| GPS (Optional) | • GPS Sensitivity: -160dBm • GPS Accuracy: 2.5m CEP • Update Rate: 1Hz@5Hz • Time to First Fix: Cold Status 27s, Hot start 1s • Protocol: NMEA-0183 2.3V |
| LED Indicator | • NET • WLAN • PWD • WTD • LAN |
| Wi-Fi | • IEEE 802.11 n/ac |
| Consumption | • Voltage: DC +7.5~36V DC (standard 12V/2A power adapter) • SIM/R-UIM Card: 3V • Idle: 500mA@+12VDC • Online: 900mA@+12VDC |
| Other | • Galvanized Steel with grounding Screw • Dimension: 179mm x 124mm x 43mm (not including antenna) • Weight: 610g (not including accessories) • Operation temperature: -30~+75°C • Storage temperature: -40~+85°C • Relative humidity: 0~95% (non-condensing) • Warranty: Two Years |
| Software | - |
| Operating System | • Linux-based WLINK OS |
| Firewall | • IP Filter • MAC Filter • Domain name Filter |
| Network Protocol | • IPv4, IPv6 (Optional)PPPoE • UDP/TCP/ICMP/NTP/DHCP • HTTP/HTTPS • UPNP • SNMP • TR069 |
| Network Monitoring | • ICMP Check • Traffic Check • Traceroute • Data Capture • Bandwidth Graph • Data Traffic Graph |
| VPN | • WireGuard / ZeroTier • DMVPN/GRE Tunnel • OpenVPN Client/Server • PPTP/L2TP Client/Server • L2TP V3 • IPsec Client/Server |
| Network Features | • 5G/WAN Failover • VLAN • Bandwidth Management • NAT/DMZ • IP Passthrough/Port Redirection • Static/Dynamic routing |
| Router Management | • Local/Remote GUI • Telnet/SSH • WLINK M2M Platform |
| WLAN | • 2.4G • 5G • 2.4G&5G Mixed |
