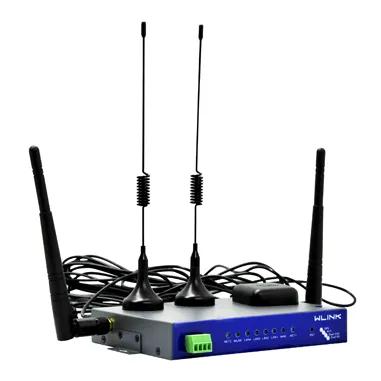

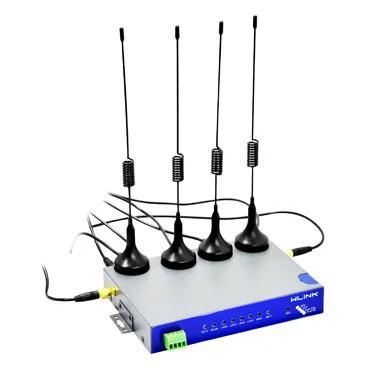

WL-R520LA-d
SKU: NWK-420
5x 100M RJ45, 1x RS-232, 2x SIM Slot, Wifi 2.4GHz
SI Price (excl. VAT)
฿11,220
per pcs · MOQ: 1
Stock
Actual: 0 units
Planning: 0 units
Shipping Conditions
Contact us for shipping details.
Warranty
Contact us for warranty details.
1
Product Highlights
| Physical | - |
| รายการ | รายละเอียด |
| Optional Cellular Network | • LTE-A• LTE• HSPA/UMTS• EDGE/GPRS |
| Hardware System | • MIPS32 Core 580MHz• 128Mb Flash, 512Mb DDR2 RAM• Hardware Watchdog |
| Interface | • 5× 10/100Mb LAN (4×LAN, 1×WAN configurable)• 1× RS-232/RS-485• 1(2)× SMA-K, 1(2)× SMA-RP antenna connectors• 1× Standard SIM/R-UIM Slot• 1× power connector |
| GPS (Optional) | • GPS Sensitivity: -160dBm• GPS Accuracy: 2.5m CEP• Update Rate: 1Hz@5Hz• Tim to First Fix: Cold Status 278s, Hot status 1s• Protocol: NMEA-0183 2.3V |
| LED Indicators | • NET• WLAN• WAN• LAN (LAN1~LAN4) |
| Wi-Fi | • IEEE 802.11 b/g/n• 2.4G |
| Consumption | • Idle: 180mA@+12VDC• Single Module Communications: 210mA@+12VDC• Dual Module Communications: 600mA@+12VDC |
| Other | • Dimension: 150mm × 102mm × 25mm• Weight: 400g• Operation temperature: -30~+70 degree• Storage temperature: -40~+85 degree• Relative humidity: <95% (non-condensing)• Guarantee: Two Years |
| Compliance | • FCC• CE• RoHS• CCC |
| Package Content | • 1× WL-R520 Router• 1× Wi-Fi antenna• 2× 4G Magnetic antenna• 1× Ethernet Cable• 1× Power Supply Adaptor |
| Software | - |
| Operating System | • WLINK OS based on Linux |
| Firewall | • IP Filter• Mac Filter• Domain name Filter |
| Network Protocol | • IPv4, IPv6 (Optional)• PPPoE• UDP/TCP/ICMP/NTP/DHCP• HTTP/HTTPS• UPNP• SNMP |
| Network Monitoring | • ICMP Check• Traffic Check• Traceroute• Data Capture• Bandwidth Graph• Data Traffic Graph |
| VPN | • Wireguard/Zerotier/GRE Tunnel• OpenVPN Client/Server• PPTP/L2TP Client/Server• L2TP V3• IPsec Client/Server• DMVPN |
| Network Features | • 4G/WAN Failover• VLAN• Bandwidth Management• NAT/DMZ• IP Passthrough / Port Redirection• Static/Dynamic routing |
| Router Management | • Local/Remote GUI• Telnet/SSH• WLINK M2M Platform |
| WLAN Mode | • Access Point• AP + WDS• Wireless Client• Wireless Ethernet Bridge• WDS |
| Wi-Fi Network Mode | • 2.4G |
| WiFi Security | • WEP• WPA Personal/Enterprise• WPA2 Personal/Enterprise• WPA/WPA2 Personal/Enterprise• Radius |
